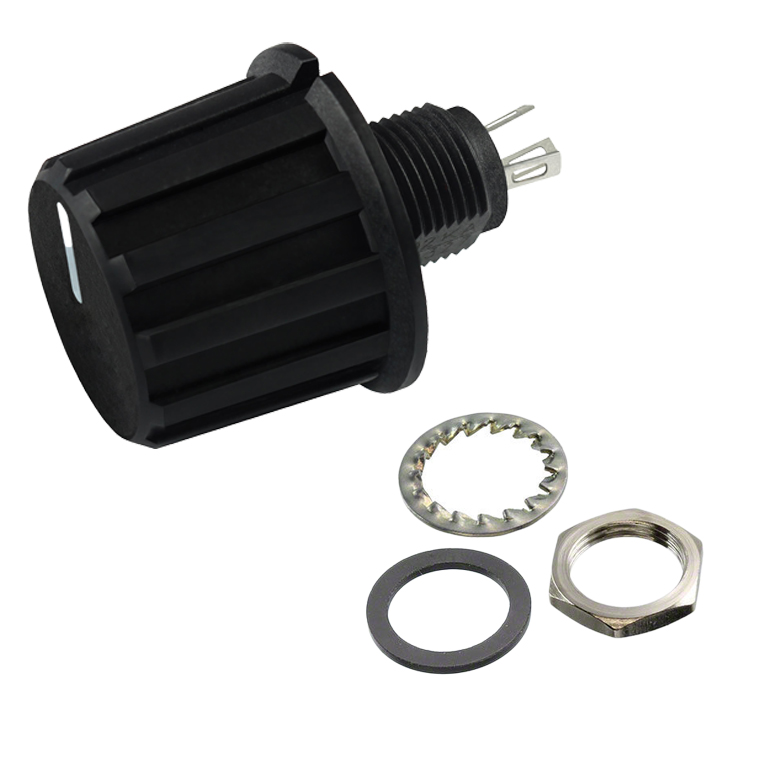

P16FNM104MARSD
ActiveVishay Dale
P16F NM 100K 20% A BO E3 RSD
P16FNM104MARSD
ActiveVishay Dale
P16F NM 100K 20% A BO E3 RSD
Description
General part information
P16FNM104MARSD
P16F NM 100K 20% A BO E3 RSD
Technical Specifications
Parameters and characteristics for this part
| Specification | P16FNM104MARSD |
|---|---|
| Actuator Diameter | 0.866 in |
| Actuator Length | 0.709 in |
| Actuator Type | Knob |
| Adjustment Type | User Defined |
| Built in Switch | Detent |
| Bushing Thread | M10 x 0.75 |
| Bushing Thread Diameter | 10 mm |
| Bushing Thread Pitch | 0.75 mm |
| Features | Sealed |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 1 W |
| Resistance | 100 kOhm |
| Resistive Material | Cermet |
| Rotation | 300 ° |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/¯C |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
