Description
General part information
BA140

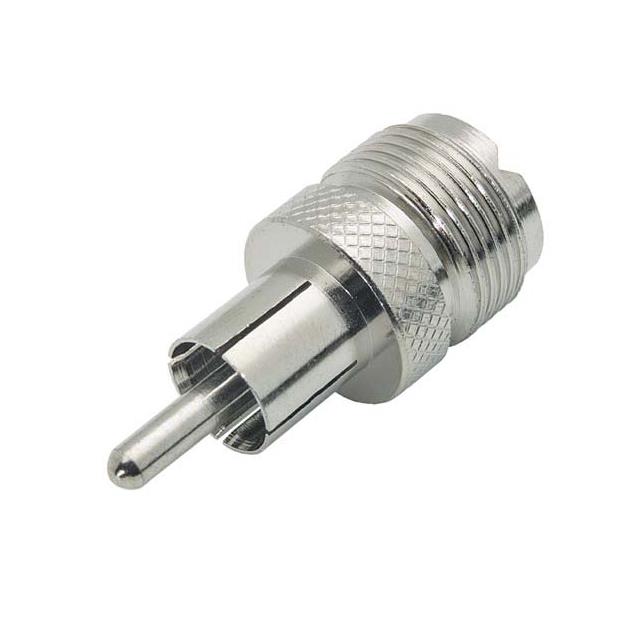

Adapter Coaxial Connector UHF Jack, Female Socket To RCA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA140 |
|---|---|
| Adapter Series | RCA to UHF |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | UHF Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | RCA Plug |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Push-Pull, Threaded |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
