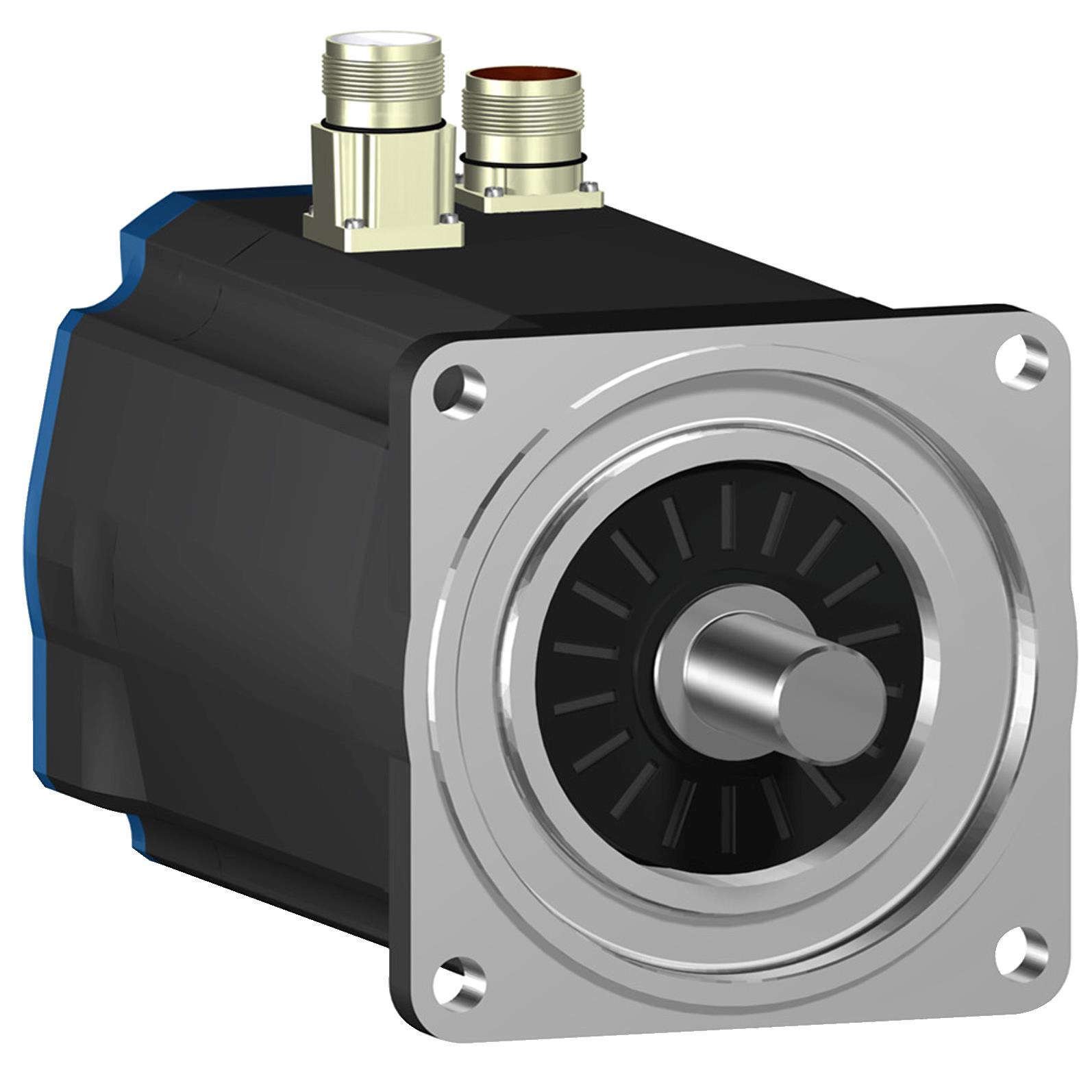

BSH1003P11A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED INC NOBRK S
BSH1003P11A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED INC NOBRK S
Description
General part information
BSH1003P11A1A
AC Motor Servomotor 6000 RPM 2.6kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH1003P11A1A |
|---|---|
| Diameter - Shaft | 0.75 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 2.6 kW |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 6730 mNm |
| Torque - Rated (oz-in) | 953 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
