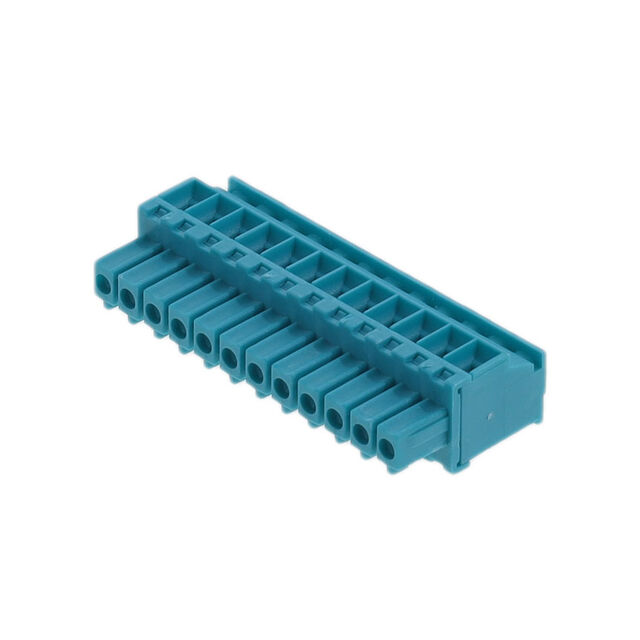

TBP03P5-350-12BE
ActiveSame Sky (Formerly CUI Devices)
2~24 POLES, PLUGGABLE, VERTICAL,
TBP03P5-350-12BE
ActiveSame Sky (Formerly CUI Devices)
2~24 POLES, PLUGGABLE, VERTICAL,
Description
General part information
TBP03P5-350-12BE
12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | TBP03P5-350-12BE |
|---|---|
| Color | Blue |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Nickel |
| Current - IEC | 7 A |
| Current - UL | 8 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Insulation Height | 0.756 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plug Wire Entry Angle | 270 ° |
| Positions Per Level | 12 |
| Screw Size | M2 |
| Termination Style | Screw |
| Torque - Screw | 0.2 Nm |
| Type | Female Sockets, Plug |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 16 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
| Wire Strip Length (Max) | 7 mm |
| Wire Strip Length (Min) | 6 mm |
