IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT
1658526-8
ActiveTE Connectivity AMP Connectors
IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT
Description
General part information
1658526-8

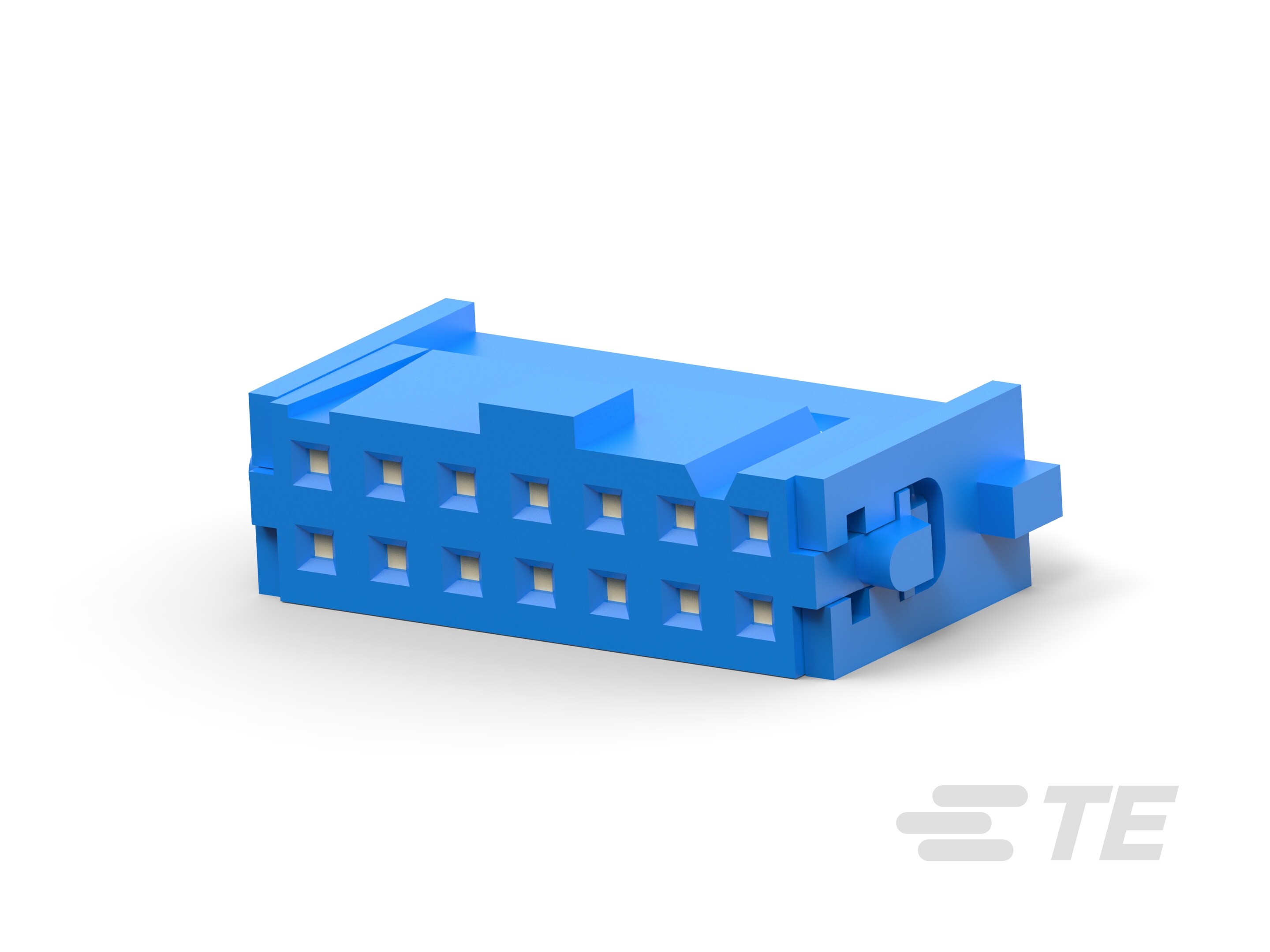

Wire-to-Board, 14 Position, 2.54 mm [.1 in] Centerline, 2 Row, Receptacle, Wire & Cable, Signal, Cable Mount (Free-Hanging), Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658526-8 |
|---|---|
| Cable Termination | IDC |
| Color | Blue |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Type | Female Socket |
| Features | Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 27.5 AWG |
| Wire Type | Ribbon Cable |
