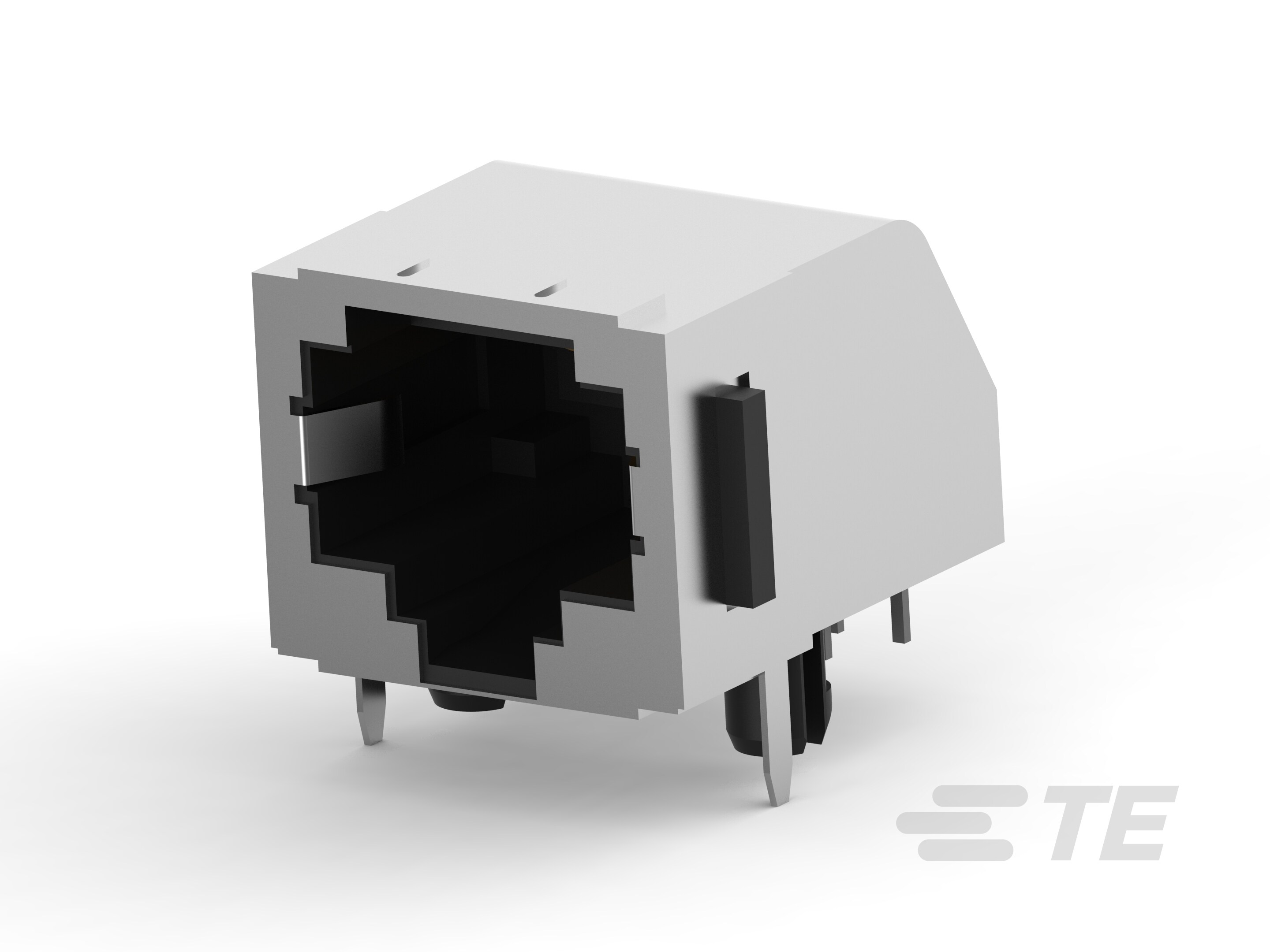

5406429-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 8 POS 2.54MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT CAT 3 BOX/TRAY
5406429-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 8 POS 2.54MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT CAT 3 BOX/TRAY
Description
General part information
5406429-1
CONN RJ-45 F 8 POS 2.54MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT CAT 3 BOX/TRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | 5406429-1 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Panel Stops |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat3 |
| Shielding | Shielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
