Description
General part information

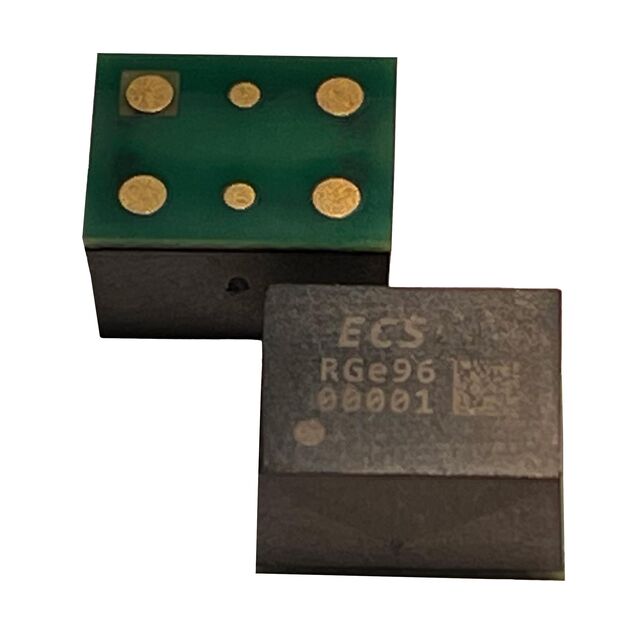

ECOC-9775-25.000-DN-TR
25 MHz OCXO LVCMOS Oscillator 3.3V 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECOC-9775-25.000-DN-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 200 mA |
| Frequency | 25 MHz |
| Frequency Stability | 20 ppb |
| Height - Seated (Max) | 0.222 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 9.5 mm |
| Package Name | 6-SMD |
| Package Width | 7.3 mm |
| Size / Dimension Length | 0.374 in |
| Size / Dimension Width | 0.287 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
