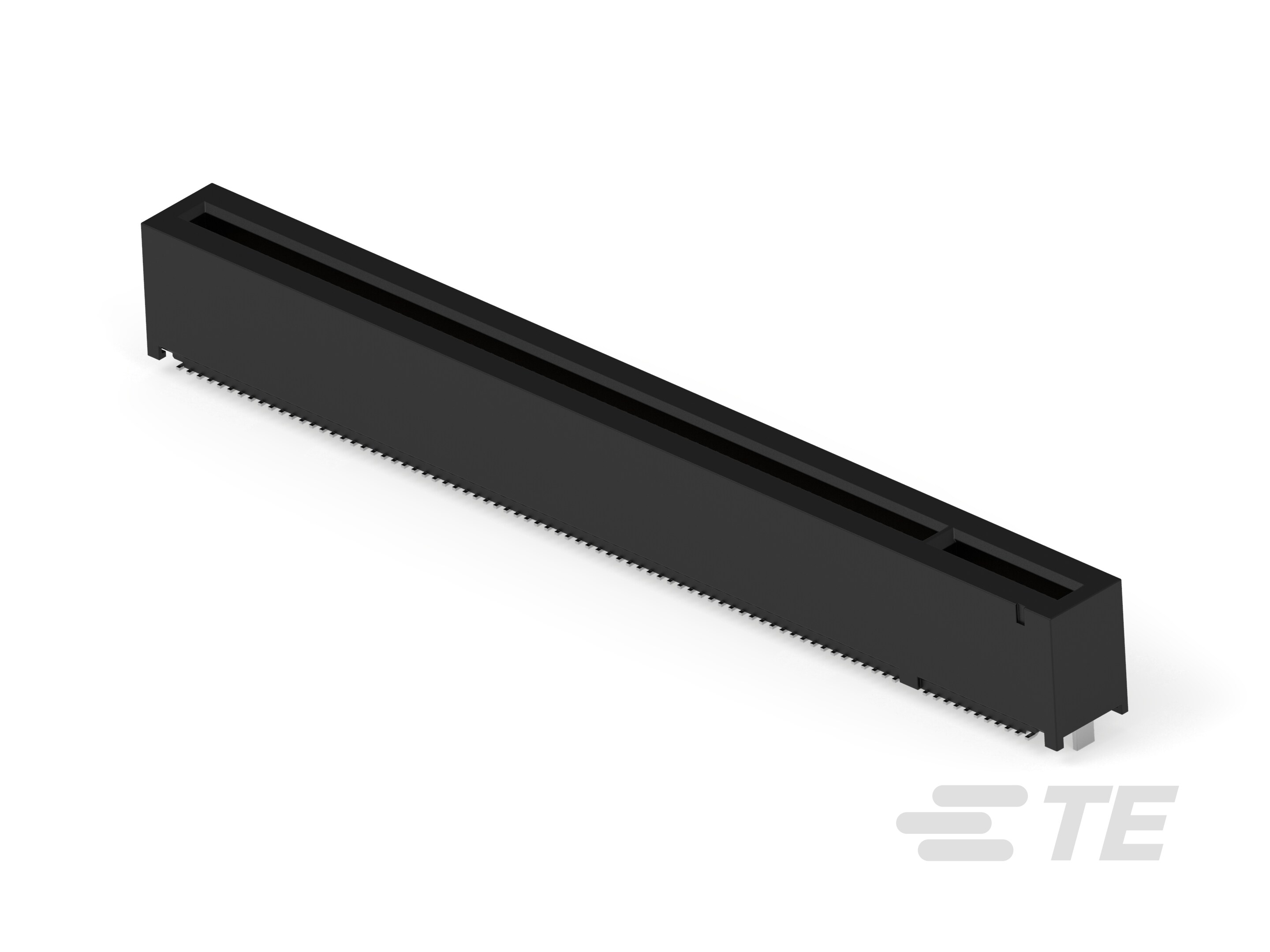

PCIE G5 CON,SMT,SLIM,164P,GF,F-ML,HT-3-2371900-8

3-2371900-8

Active
TE Connectivity AMP Connectors

PCIE G5 CON,SMT,SLIM,164P,GF,F-ML,HT

Find alt
PCIE G5 CON,SMT,SLIM,164P,GF,F-ML,HT-3-2371900-8

3-2371900-8

Active
TE Connectivity AMP Connectors

PCIE G5 CON,SMT,SLIM,164P,GF,F-ML,HT

Find alt

Description

General part information

3-2371900-8

Board-to-Board, 164 Position, 1 mm [.04 in] Centerline, Vertical, Black, 11.25 mm [.44 in] Height, 7.4 mm [.29 in] Width, PCI & PCI Express Connectors

Technical Specifications

Parameters and characteristics for this part

Specification3-2371900-8
Card Thickness0.062 in
Card TypePCI Express™
ColorBlack
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact MaterialCopper Alloy
Contact TypeCantilever
FeaturesGEN5, Board Guide, Solder Retention, Pick and Place Cap
GenderFemale
Mounting TypeSurface Mount
Number of Bay71
Number of Positions11, 164
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.039 in
Read OutDual
TerminationSolder
