LNCF001-14.31818M
NRNDNDK (NIHON DEMPA KOGYO CO., LTD)

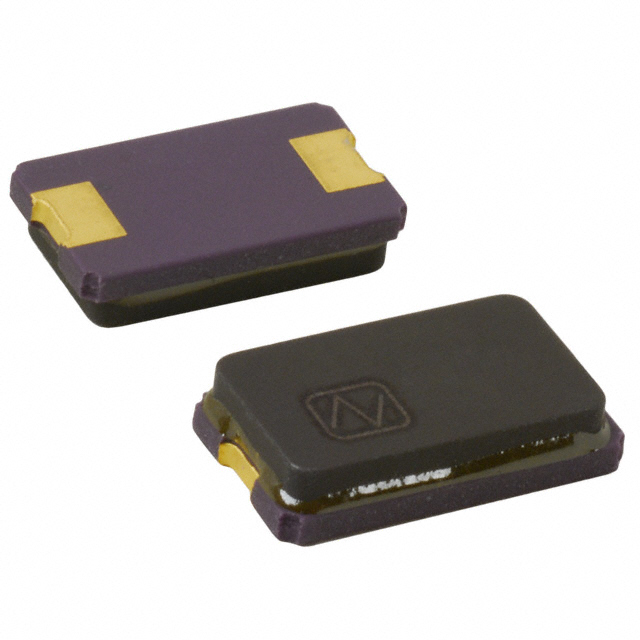

CRYSTAL 14.31818MHZ 8PF SMD
LNCF001-14.31818M
NRNDNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 14.31818MHZ 8PF SMD
Description
General part information
LNCF001-14.31818M
14.31818 MHz ±50ppm Crystal 8pF 50 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LNCF001-14.31818M |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 14.31818 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.079 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.177 in |
| Type | MHz Crystal |
