POWER ENTRY CONNECTOR, 32 A, 415 V, PANEL MOUNT, INLET, 4P5W, RED
2CMA100617R1000
ActiveMcGill Microwave Systems
POWER ENTRY CONNECTOR, 32 A, 415 V, PANEL MOUNT, INLET, 4P5W, RED
Description
General part information
2CMA100617R1000

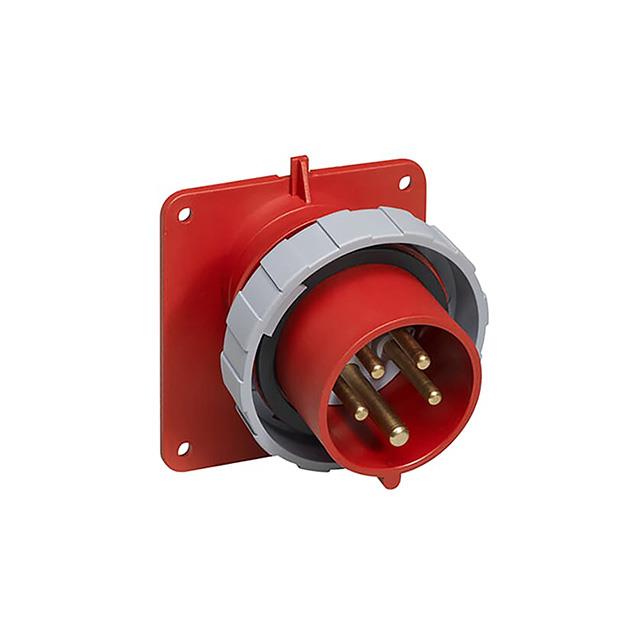

Power Connector Receptacle, Male Pins Pin and Sleeve (4P5W) Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CMA100617R1000 |
|---|---|
| Approval Agency | UL, CSA |
| Connector Style | Pin and Sleeve (4P5W) |
| Connector Type | Receptacle, Male Pins |
| Current Rating | 32 A |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 5 |
| Termination | Screw |
| Voltage Rating (Option 1) | 200 VAC |
| Voltage Rating (Option 2) | 415 V |
