1903115-4
ActiveTE Connectivity AMP Connectors
DYNAMIC D1000 TAB CONT AU 0.2UM S L/P
1903115-4
ActiveTE Connectivity AMP Connectors
DYNAMIC D1000 TAB CONT AU 0.2UM S L/P
Description
General part information
1903115-4

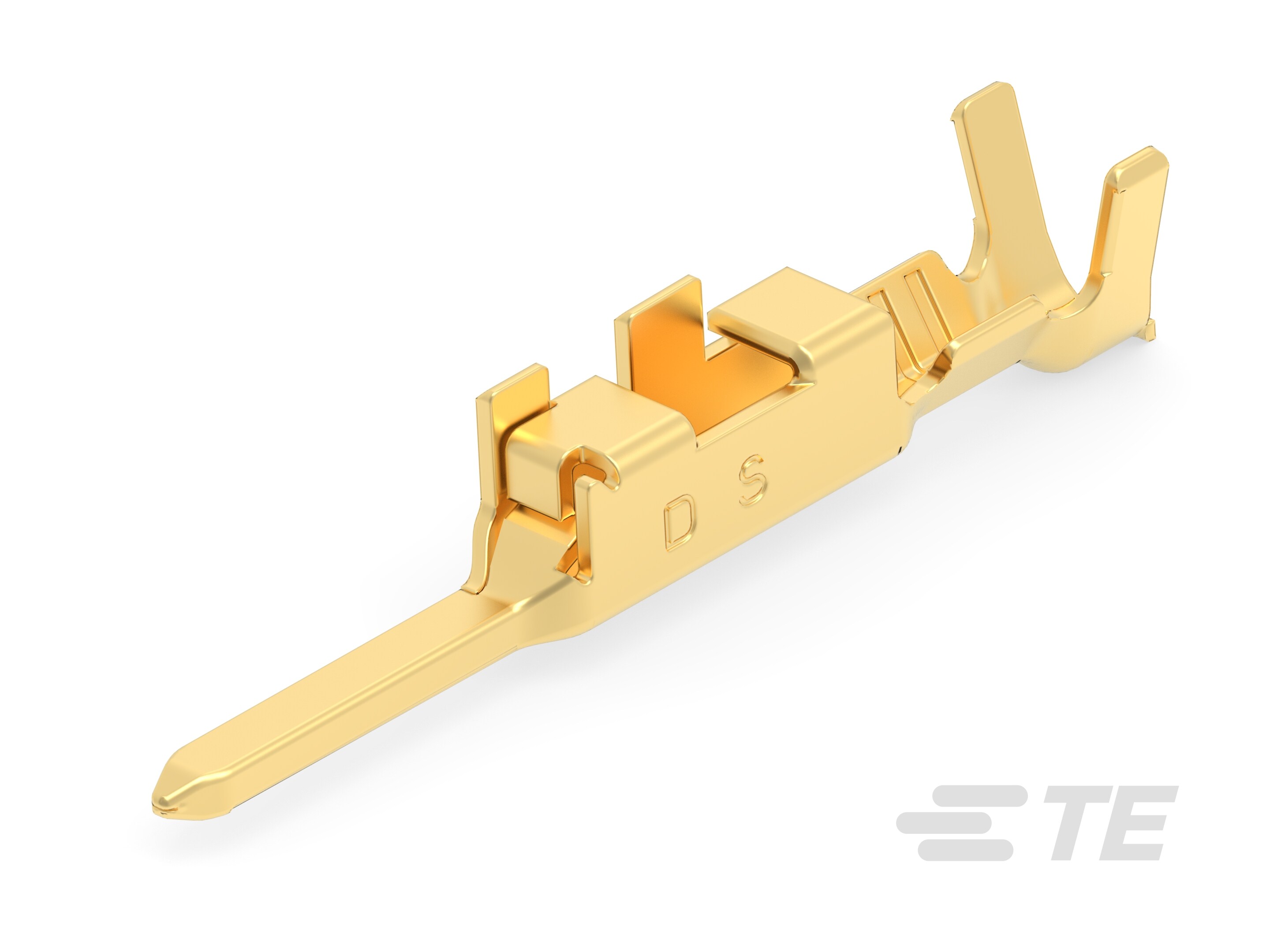

Tab Contact, Gold (Au), Locking Lance Contact Retention, 30 – 28 AWG, .05 – .09 mm² Wire, Crimp, Signal, -55 – 105 °C [-67 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 1903115-4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Termination | Crimp |
| Pin or Socket | Tab |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 27.5 AWG |
