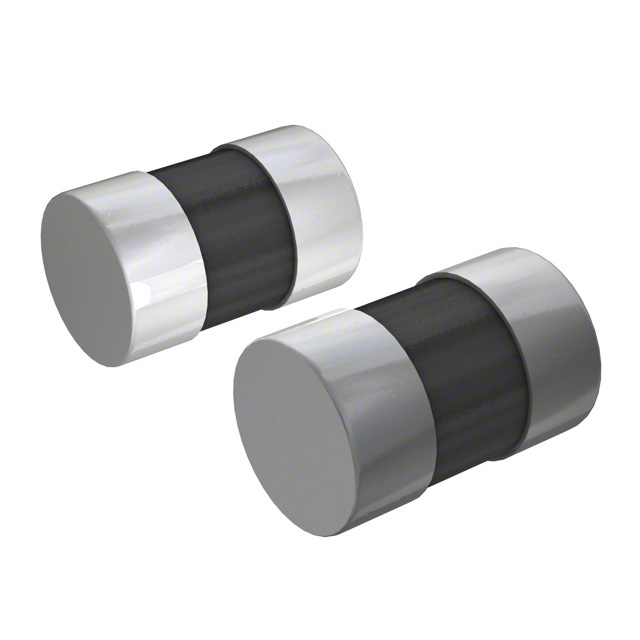

JJN-50L
ActiveEaton - Electronics Division
FUSE CARTRIDGE 50A 300VAC/160VDC
JJN-50L
ActiveEaton - Electronics Division
FUSE CARTRIDGE 50A 300VAC/160VDC
Description
General part information
JJN-50L
50A 300 VAC 160 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JJN-50L |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Class | T |
| Current Rating | 50 A |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Fast Blow |
| Size / Dimension Length | 0.875 in |
| Size / Dimension Width | 0.5 in |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 160 V |
