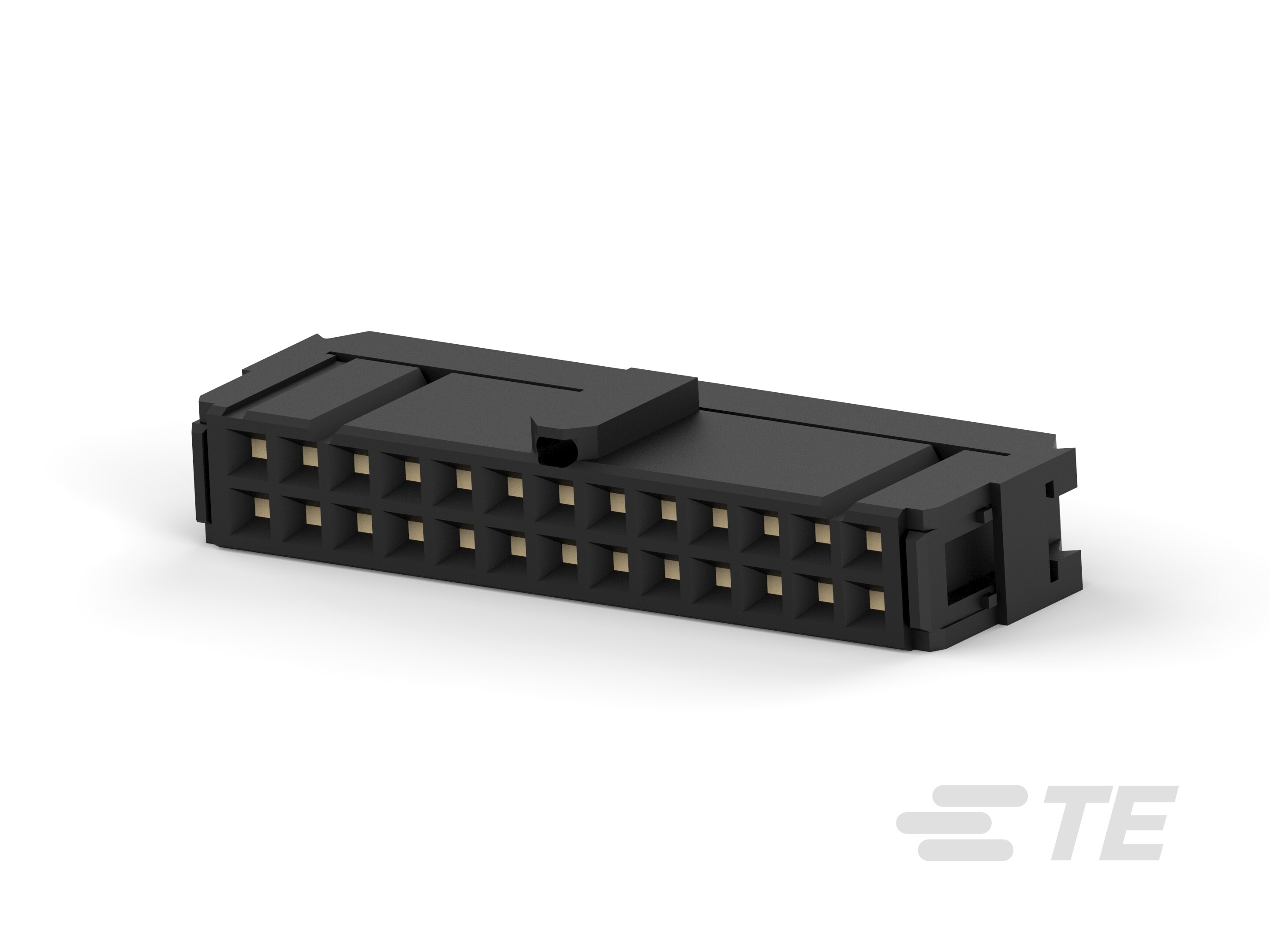

26 NOVO MIL/CTR 30DP,LEAD FREE-1658622-6

1658622-6

Active
TE Connectivity AMP Connectors

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Find alt
26 NOVO MIL/CTR 30DP,LEAD FREE-1658622-6

1658622-6

Active
TE Connectivity AMP Connectors

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Find alt

Description

General part information

AMP-LATCH - NOVO Series

The 1658622-6 is a 26-position 2-row vertical Wire-to-Board Ribbon Cable Pin Header with gold-plated phosphor bronze contacts and black UL94V-0 rated thermoplastic housing. Novo receptacles offer a dual contact interface with all normal force created by metal-to-metal contact. It provides a higher degree of contact reliability. The Novo tuning fork contact offers a military-approved design.

Technical Specifications

Parameters and characteristics for this part

Specification1658622-6
Cable TerminationIDC
ColorBlack
Connector TypeReceptacle
Contact FinishGold-Palladium, Gold
Contact Finish Thickness30 µin
Contact TypeForked
FeaturesFeed Through, Polarizing Key
Mounting TypeFree Hanging (In-Line)
Number of Positions26
Number of Rows2
Pitch0.1 in
Row Spacing0.1 in
Wire Gauge (AWG) (Max)28 AWG
Wire Gauge (AWG) (Min)26 AWG
Wire TypeRibbon Cable
