Description
General part information

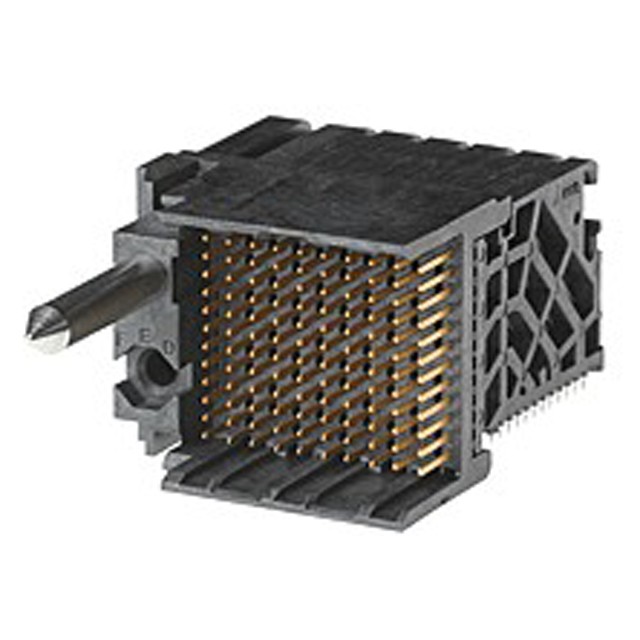

0765003107
CONN HDR IMPACT 120POS EDGE MNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0765003107 |
|---|---|
| Color | Black |
| Connector Style | Guide Left, Impact |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 40 |
| Features | Board Guide |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Termination | Press-Fit |
