Description

General part information

9000440F0-AA12L0150

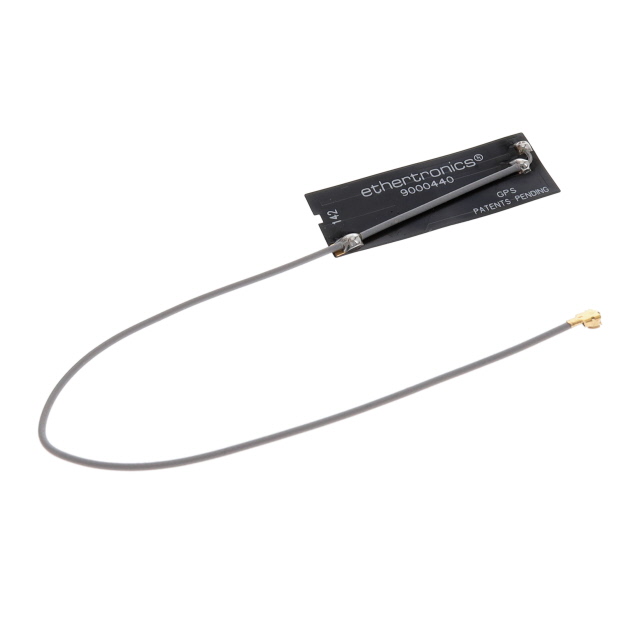

RF ANTENNA Beidou, Galileo, GLONASS, GPS PCB Trace U.FL Adhesive

Technical Specifications

Parameters and characteristics for this part

Specification9000440F0-AA12L0150
Antenna TypePCB Trace
ApplicationsGalileo, GLONASS, BEIDOU, GPS
Frequency (Center/Band)1.575GHz, 1.598GHz, 1.606GHz, 1.56GHz
Frequency GroupUHF
Frequency Group Maximum (UHF)2 GHz
Frequency Group Minimum (UHF)1 GHz
Gain2.4 dBi, 2.5 dBi
Mounting TypeAdhesive
Number of Bands4
RF Family/StandardNavigation
TerminationU.FL
VSWR2.3
