JBXEA0G06FSSDP
ObsoleteAmphenol Aerospace Operations
CONN RCPT FMALE 6P GOLD SLDR CUP
JBXEA0G06FSSDP
ObsoleteAmphenol Aerospace Operations
CONN RCPT FMALE 6P GOLD SLDR CUP
Description
General part information
JBXEA0G06FSSDP

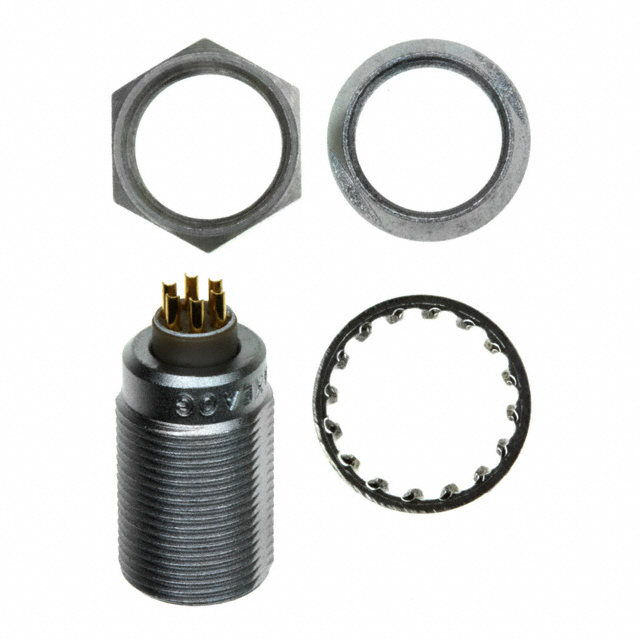

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | JBXEA0G06FSSDP |
|---|---|
| Applications | Telecommunications, Instrumentation, Industrial, Medical |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 19.7 µin |
| Current Rating | 2.5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP40 |
| Insert Material | Polyetheretherketone, PEEK |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front or Rear Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome, Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shell Size - Insert | 0 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 320 V |
