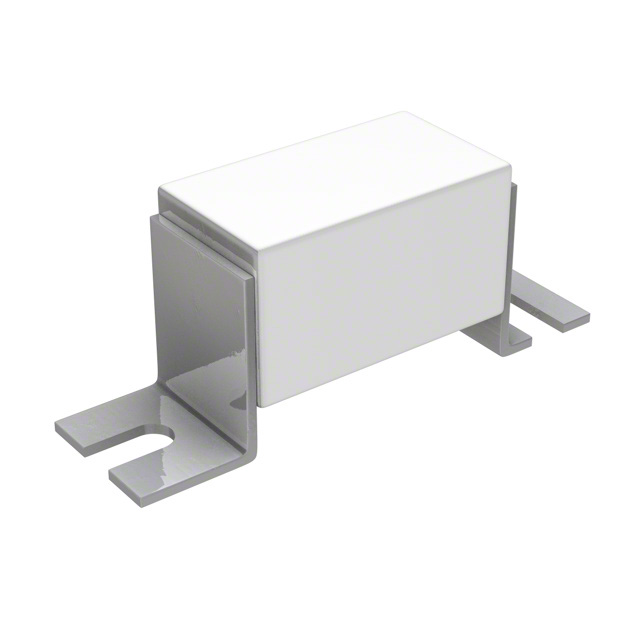

170M2609
ActiveEaton - Electronics Division
FUSE SQUARE 32A 700VAC RECT
170M2609
ActiveEaton - Electronics Division
FUSE SQUARE 32A 700VAC RECT
Description
General part information
170M2609
32A 700 VAC Fuse Square Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 170M2609 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 32 A |
| Features | Indicating |
| Fuse Type | Square |
| Melting I²t | 28.5 |
| Mounting Type | Bolt Mount |
| Package / Case | Rectangular, Blade |
| Size / Dimension Height | 2.008 in |
| Size / Dimension Length | 2.126 in |
| Size / Dimension Width | 1.181 in |
| Voltage Rating - AC | 700 V |
