095-902-589M100
ActiveMcGill Microwave Systems
CABLE ASSEMBLY LMR-100 1M SMA TO SMA PL-PL
095-902-589M100
ActiveMcGill Microwave Systems
CABLE ASSEMBLY LMR-100 1M SMA TO SMA PL-PL
Description
General part information
095-902-589M100

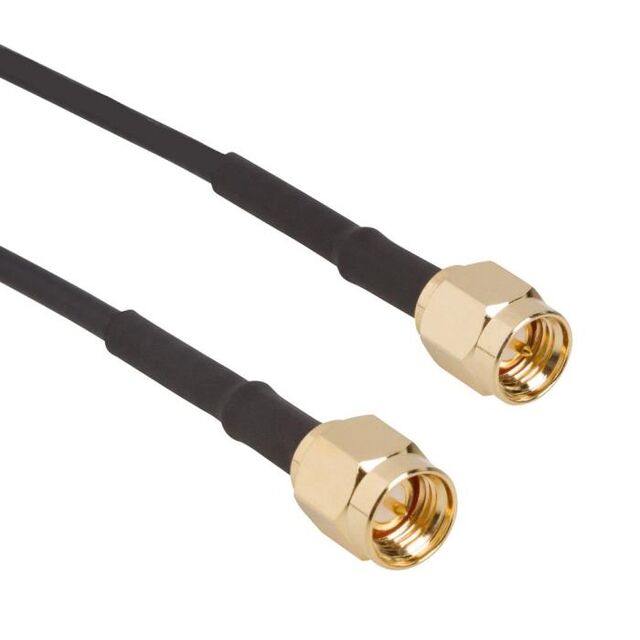

Cable Assembly Coaxial SMA to SMA LMR 100A 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-902-589M100 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 100A |
| Color | Copper |
| Frequency - Max | 6000 MHz |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
