158120-1100-HF625/20-D-3

Active

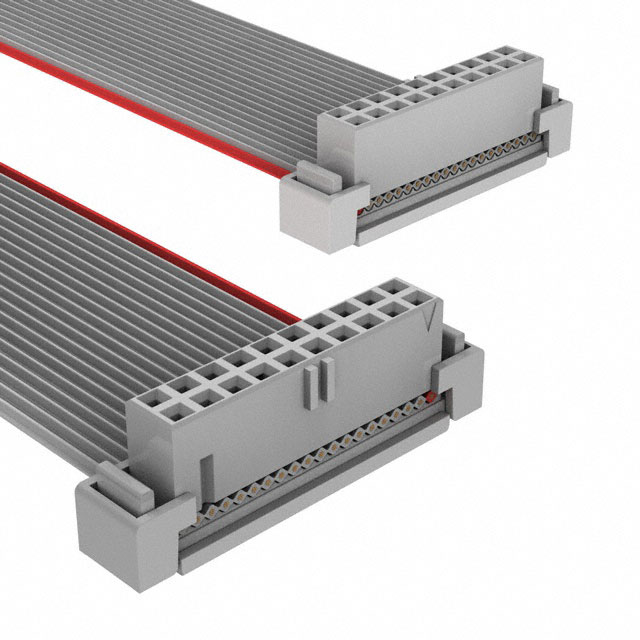

CABLE 20POS SOCKET TO SOCKET 3"

Search across all available documentation for this part.

Active

CABLE 20POS SOCKET TO SOCKET 3"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	158120-1100-HF625/20-D-3	158120 Series

Cable Termination	IDC	IDC
Color	-	Gray
Connector Type	Socket to Socket	Socket, Socket to Socket, Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	-	Female Socket
Features	-	Feed Through
Length	3 "	3 - 6 "
Length	76.2 mm	76.2 - 152.4 mm
Length	0.25 ft	0.25 ft
Length	-	0.5 '
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	20	20
Number of Rows	2	2
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Cable	1 mm	1 mm
Pitch - Cable [custom]	0.039 "	0.039 "
Pitch - Connector	2 mm	2 mm
Pitch - Connector	0.079 in	0.079 in
Row Spacing	-	2 mm
Row Spacing	-	0.079 in
Shielding	Unshielded	Unshielded
Wire Gauge	-	28 AWG
Wire Type	-	Ribbon Cable

CONN SOCKET 20POS IDC 28AWG GOLD

Part	Wire Gauge	Cable Termination	Connector Type	Features	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Row Spacing	Row Spacing	Contact Finish	Mounting Type	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable [custom]	Pitch - Connector	Pitch - Connector	Length	Length	Length	Length
3M 158120-1100	28 AWG	IDC	Socket	Feed Through	Ribbon Cable	2	0.079 in	2 mm	0.76 Ám	30 Áin	Gray	Female Socket	2 mm	0.079 in	Gold	Free Hanging (In-Line)	20
3M 158120-1100-3625/20-D-6		IDC	Socket to Socket			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	152.4 mm	6 "	0.5 '
3M 158120-1100-HF625/20-D-3		IDC	Socket to Socket			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	76.2 mm	3 "		0.25 ft
3M 158120-1100-3625/20-S-6		IDC	Socket to Cable			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00")
