B43890A5226M000
ActiveEPCOS - TDK Electronics
CAP ALUM 22UF 20% 450V RADIAL TH
B43890A5226M000
ActiveEPCOS - TDK Electronics
CAP ALUM 22UF 20% 450V RADIAL TH
Description
General part information
B43890A5226M000
22 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B43890A5226M000 |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| Height - Seated (Max) | 0.866 in |
| Lead Spacing | 0.295 in |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |

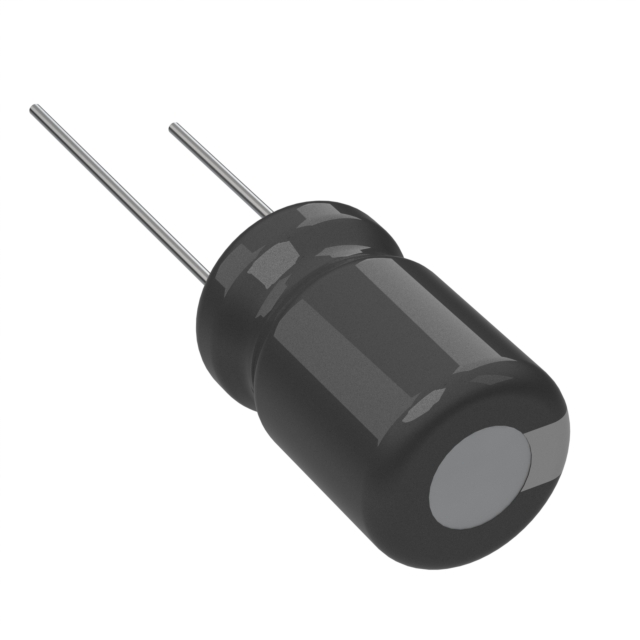

| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 615 mA |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
