NSYPLA12124TG
ActiveSCHNEIDER ELECTRIC
ENCLOSURE GRY 49.21"L X 49.21"W
NSYPLA12124TG
ActiveSCHNEIDER ELECTRIC
ENCLOSURE GRY 49.21"L X 49.21"W
Description
General part information
NSYPLA12124TG

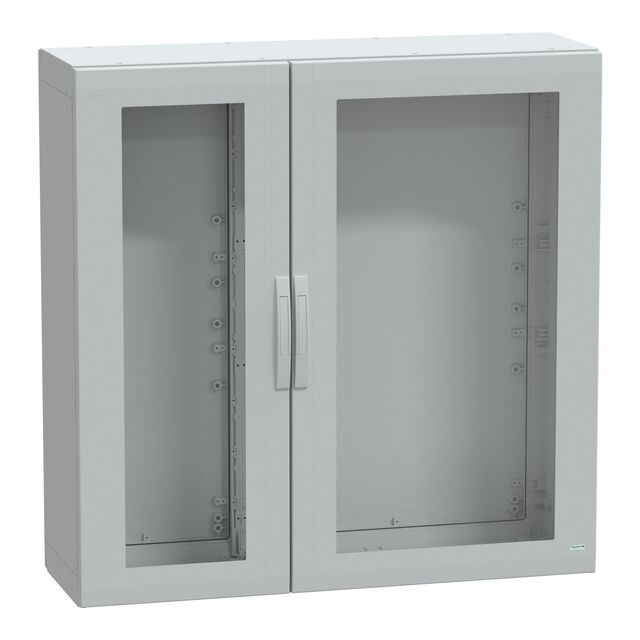

Enclosure Fiberglass/Polyester Gray, Clear Cover Hinged Door 49.213" L x 49.213" W (1250.00mm x 1250.00mm) X 16.535" (420.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYPLA12124TG |
|---|---|
| Area (L x W) | 2422 in² |
| Color | Clear Cover, Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 16.535 in |
| Material | Fiberglass, Polyester |
| Ratings | 2, IP65, NEMA, 1, 12, 13 |
| Size / Dimension Length | 49.213 in |
| Size / Dimension Width | 49.213 in |
