HHR-380AB27L2X5
ActivePanasonic Energy

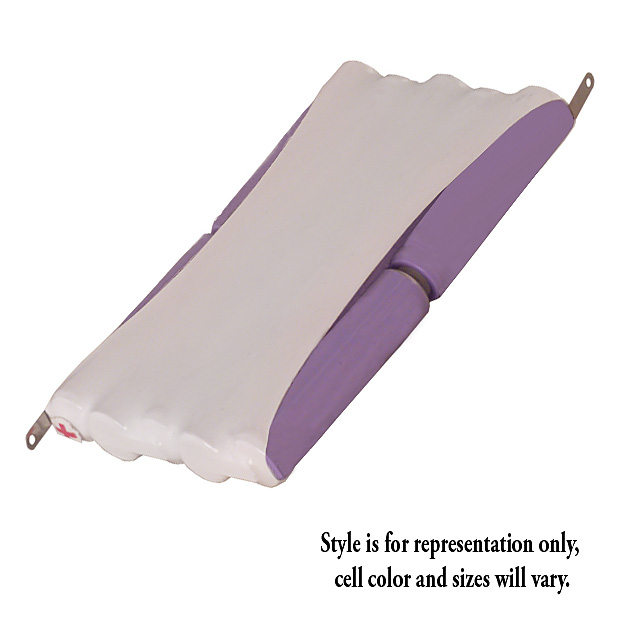

BATTERY PACK NIMH 12V L-A
HHR-380AB27L2X5
ActivePanasonic Energy
BATTERY PACK NIMH 12V L-A
Description
General part information
HHR-380AB27L2X5
L-A 12 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-380AB27L2X5 |
|---|---|
| Battery Cell Size | L-A |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 3.7 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 10 |
| Rechargeability | Yes |
| Size / Dimension Height | 5.28 in |
| Size / Dimension Length | 3.35 in |
| Size / Dimension Width | 0.67 in |
| Structure | Front to Back |
| Structure Cells | 2 |
| Structure Rows | 5 |
| Termination Style | Solder Tab |
| Voltage - Rated | 12 VAC |
| Weight | 544.3 g |
