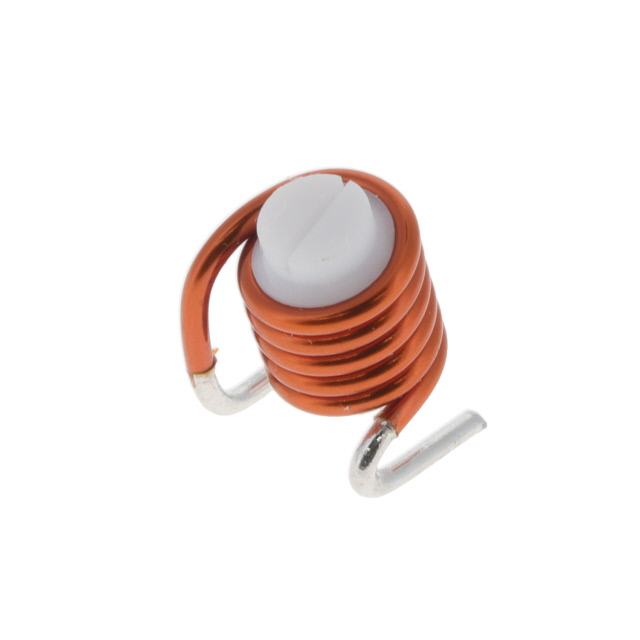

JLC05E088TRVSM

Active

Knowles Johanson Manufacturing

ADJUSTABLE INDUCTOR 74NH SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

ADJUSTABLE INDUCTOR 74NH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	JLC05E088TRVSM	JLC05E Series

Height [z]	8 mm	8 mm
Height [z]	0.315 in	0.315 in
Inductance	74 nH	74 nH
Mounting Type	Surface Mount	Surface Mount
Package / Case	Radial, Vertical Cylinder (Open)	Radial, Vertical Cylinder (Open), Radial, Horizontal Cylinder (Open)
Q @ Freq	100 MHz, 114	100 - 114 MHz
Size / Dimension	-	8 mm
Size / Dimension	-	0.315 "
Size / Dimension [diameter]	7 mm	7 mm
Size / Dimension [diameter]	0.276 in	0.276 in

ADJUSTABLE INDUCTOR 74NH SMD

Part	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Q @ Freq	Package / Case	Mounting Type	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]
Knowles Johanson Manufacturing JLC05E088TRVSM	74 nH	7 mm	0.276 in	100 MHz, 114	Radial, Vertical Cylinder (Open)	Surface Mount	8 mm	0.315 in
Knowles Johanson Manufacturing JLC05E088TRSM	74 nH	7 mm	0.276 in	100 MHz, 114	Radial, Horizontal Cylinder (Open)	Surface Mount			8 mm	0.315 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

74 nH Adjustable Inductors 114 @ 100MHz Radial, Vertical Cylinder (Open)
