Description
General part information

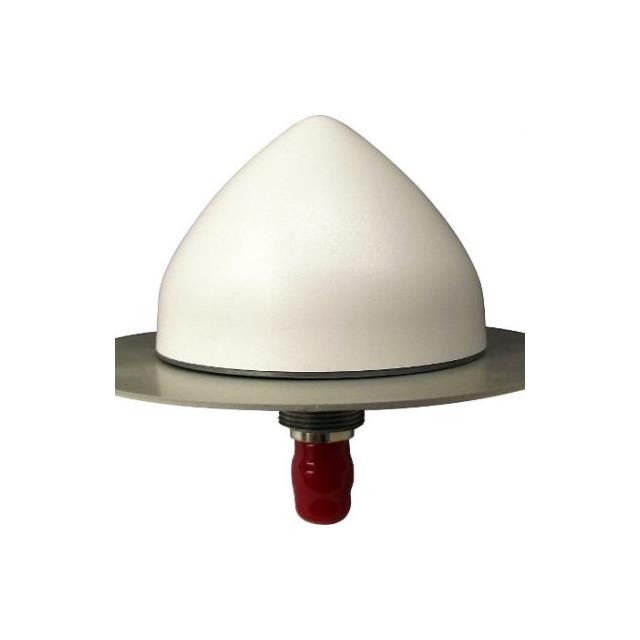

33-3972XF-01-01
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Dome M18 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-3972XF-01-01 |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Features | LNA, Filter |
| Frequency (Center/Band) | 1.549GHz, 1.2075GHz, 1.5825GHz |
| Frequency (Center/Band) - 1 | 1.2075 GHz |
| Frequency (Center/Band) - 2 | 1.549 GHz |
| Frequency (Center/Band) - 3 | 1.5825 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.255 GHz |
| Frequency Range (Band 1) Minimum | 1.16 GHz |
| Frequency Range (Band 2) Maximum | 1.559 GHz |
| Frequency Range (Band 2) Minimum | 1.539 GHz |
| Frequency Range (Band 3) Maximum | 1.606 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Gain | 3.5 dBic, 4 dBic, -1.5 dBic, 2.5 dBic |
| Height (Max) | 0.827 in |
| Ingress Protection | IP69K |
| Mounting Type | Through Hole |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | M18 |
| VSWR | 1.8 |
