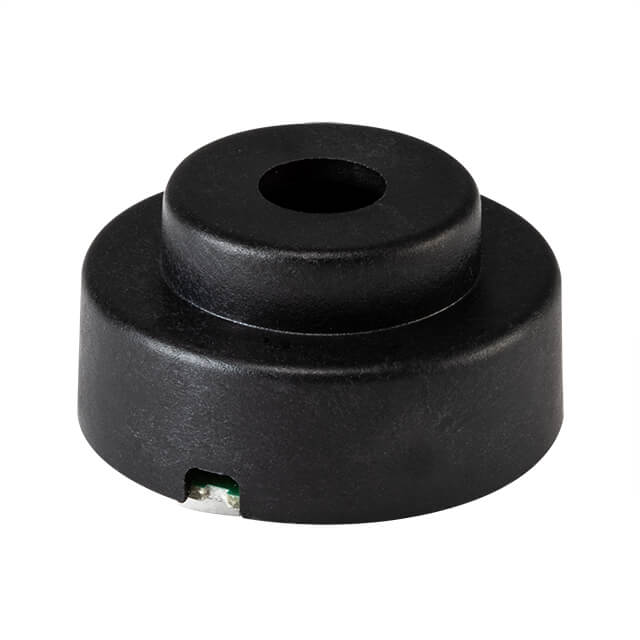

CPT-3016-105T
ActiveSame Sky (Formerly CUI Devices)
30MM, PIEZO, 12V
CPT-3016-105T
ActiveSame Sky (Formerly CUI Devices)
30MM, PIEZO, 12V
Description
General part information
CPT-3016-105T
Buzzers Transducer, Externally Driven Piezo 12 V 3mA 3.25kHz 105dB @ 12V, 30cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT-3016-105T |
|---|---|
| Current - Supply | 3 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3.25 kHz |
| Height - Seated (Max) | 16.51 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.205 in |
| Sound Pressure Level (SPL) | 105 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 16 V |
| Voltage Range (Min) | 5.5 VDC |
