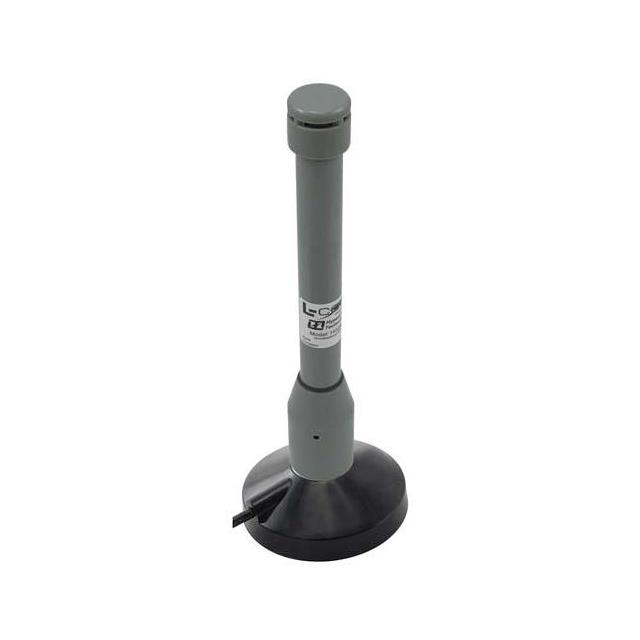

HG2404MGU-NM
ActivePasternack
ANTMAGMNT 2.4GHZ 4DBI NM 10'
HG2404MGU-NM
ActivePasternack
ANTMAGMNT 2.4GHZ 4DBI NM 10'
Description
General part information
HG2404MGU-NM
2.4GHz 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN Whip, Straight RF Antenna 4dBi N Type Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2404MGU-NM |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | WLAN, Bluetooth, ISM, Wi-Fi, 802.11b/g/n |
| Cable Length | 3.05 m |
| Features | 3.05m, Cable |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Gain | 4 dBi |
| Height (Max) | 7.9 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Bluetooth, WiFi, General ISM |
| Termination Type | N Type Male |
