Description
General part information

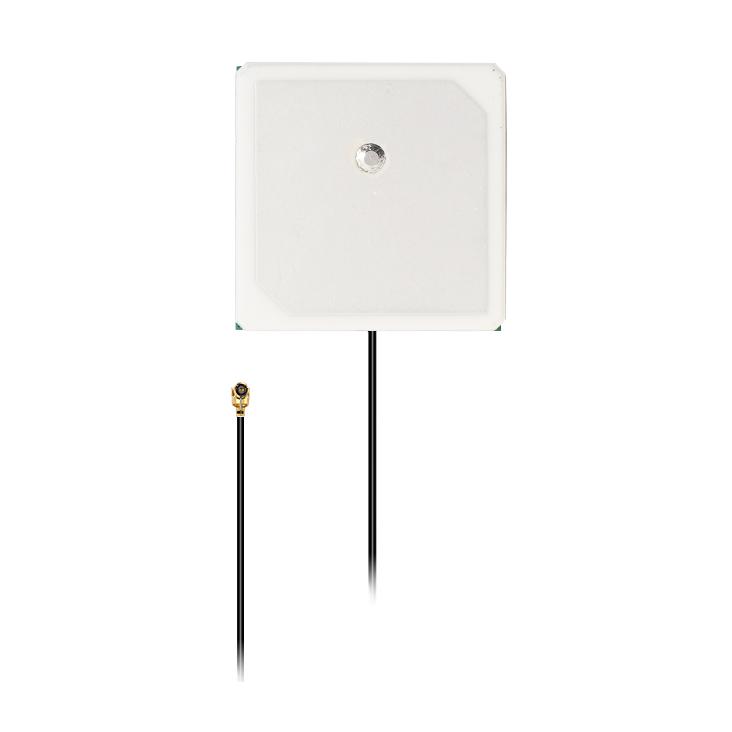

YFGA035E3DM
EMBEDDED ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | YFGA035E3DM |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GNSS |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 1.572 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.586 GHz |
| Frequency Range (Min) | 1.559 GHz |
| Gain | 1.39 dBi |
| Height (Max) | 0.39 in |
| Mounting Type | Buckle |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | I-PEX MHF1 |
