9001KP35LGG9
ActiveSCHNEIDER ELECTRIC

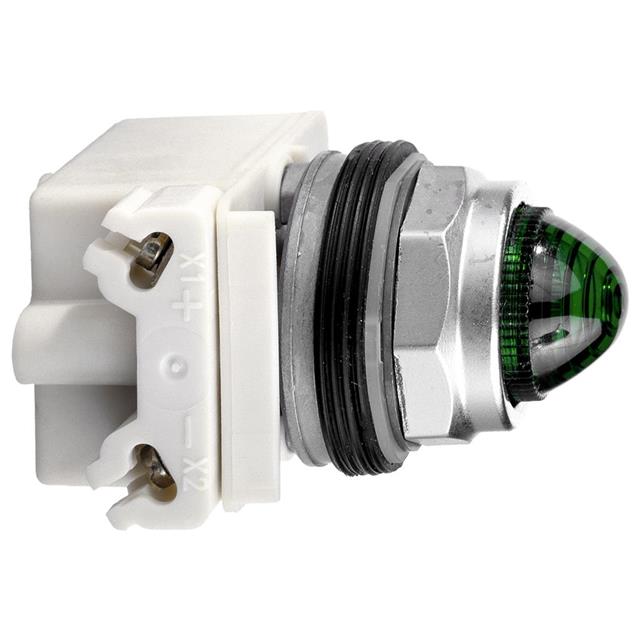

LED PANEL MOUNT INDICATOR, ROUND, SCREW CLAMP TERMINALS, GREEN, 28 V, 30 MM
9001KP35LGG9
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, ROUND, SCREW CLAMP TERMINALS, GREEN, 28 V, 30 MM
Description
General part information
9001KP35LGG9
LED Panel Indicator Green 24V ~ 28V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP35LGG9 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Style | Round, Domed Top |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 28 V |
| Voltage (Min) | 24 V |
