RLRD121LC01A
ActivePasternack
LC IP68 RCPT FLNG MNT MM DCAP
RLRD121LC01A
ActivePasternack
LC IP68 RCPT FLNG MNT MM DCAP
Description
General part information
RLRD121LC01A

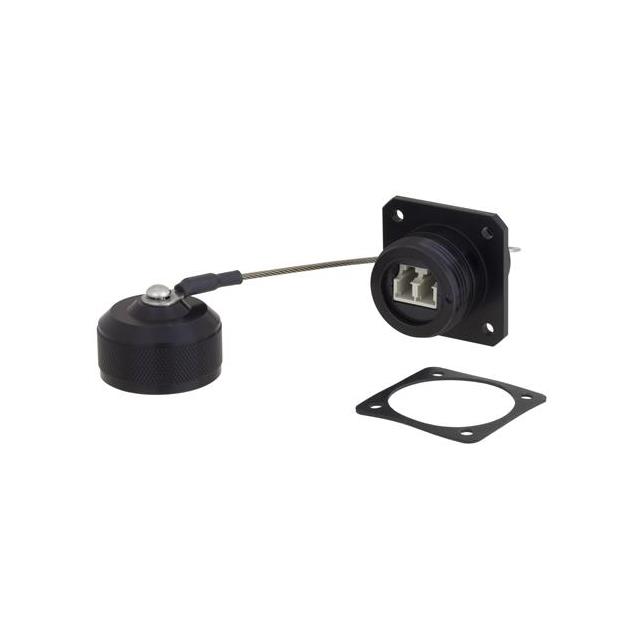

Fiber Optic Receptacle Connector LC Duplex Beige
Technical Specifications
Parameters and characteristics for this part
| Specification | RLRD121LC01A |
|---|---|
| Attenuation (Typical) | -0.5 db |
| Body Material | Aluminum |
| Connector Style | LC |
| Connector Type | Receptacle |
| Fastening Type | Threaded |
| Features | Dust Cap |
| Housing Color | Beige |
| Housing Material | Thermoplastic |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mating Cycles | 500 cycles |
| Mode | Multimode |
| Mounting Type | Square Flange, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Simplex/Duplex | Duplex |
