1050757-1
ActiveTE Connectivity AMP Connectors

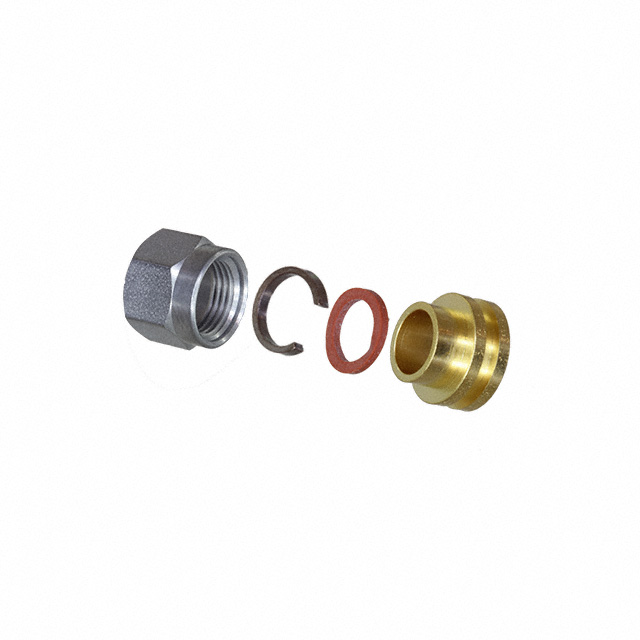

CONN SMA PLUG STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1050757-1
ActiveTE Connectivity AMP Connectors
CONN SMA PLUG STR 50 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1050757-1 | 1050 Series |
|---|---|---|
| Body Finish | Gold; Passivated | Gold; Passivated, Gold |
| Body Material | Stainless Steel | Stainless Steel |
| Cable Group | - | RG-188, RG-405 (.085" Semi Rigid) |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Connector Style | SMA | SMA |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | - | Solder, Push On |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz | 12.4 - 18 GHz |
| Housing Color | Gold, Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | Insulator, Contact, Collar, Clamp, Connector, 6 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Housing, 1 Insulator, 1 Ring |
| Insertion Loss | - | 0.3 dB |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Solder | Clamp, Solder, Crimp |
| Voltage Rating | 335 V | 250 - 335 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1050 Series
CONN SMA PLUG STR 50 OHM SOLDER
| Part | Mounting Type | Connector Style | Mating Cycles | Body Material | Contact Termination | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Cable Group | Voltage Rating | Center Contact Plating | Number of Ports | Frequency - Max [Max] | Center Contact Material | Shield Termination | Dielectric Material | Impedance | Includes | Body Finish | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1050721-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Silver | -65 ░C | 165 °C | Male Pin, Plug | RG-188 | 250 VDC | Gold | 1 | 18 GHz | Beryllium Copper | Clamp | Polytetrafluoroethylene (PTFE) | 50 Ohms | Clamp, Collar, Connector, Contact, Insulator | ||
TE Connectivity AMP Connectors 1050903-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Silver | -65 ░C | 125 °C | Female Socket, Jack | RG-188 | 250 VDC | Gold | 1 | 12.4 GHz | Beryllium Copper | Clamp | Polytetrafluoroethylene (PTFE) | 50 Ohms | Clamp, Collar, Connector, Contact, Insulator | ||
TE Connectivity AMP Connectors 1050757-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Gold, Silver | -65 ░C | 105 ░C | Male Pin, Plug | 335 V | 1 | 18 GHz | Solder | 50 Ohms | Gold; Passivated | |||||||
TE Connectivity AMP Connectors 1050744-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Push On | Silver | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | 50 Ohms | 0.3 dB | ||
TE Connectivity AMP Connectors 1050548-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Gold | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | Connector, Contact, Insulator | Gold | |
TE Connectivity AMP Connectors 1050756-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Gold | -65 ░C | 105 ░C | Male Pin, Plug | 335 V | 1 | 18 GHz | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | ||||||
TE Connectivity AMP Connectors 1050735-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Gold, Silver | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold; Passivated | ||
TE Connectivity AMP Connectors 1050564-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Gold | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | 6 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Housing, 1 Insulator, 1 Ring | Gold | 0.3 dB |
TE Connectivity AMP Connectors 1050532-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Gold | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | ||
TE Connectivity AMP Connectors 1050542-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Gold | -65 ░C | 105 ░C | Male Pin, Plug | 335 V | 1 | 18 GHz | Solder | 50 Ohms | Gold | |||||||
TE Connectivity AMP Connectors 1050547-1 | Free Hanging (In-Line) | SMA | 500 | Stainless Steel | Solder | Gold | -65 ░C | 105 ░C | Male Pin, Plug | RG-405 (.085" Semi Rigid) | 335 V | Gold | 1 | 18 GHz | Beryllium Copper | Solder | Polytetrafluoroethylene (PTFE) | 50 Ohms | Connector, Contact, Insulator | Gold |
Description
General part information
1050 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)
