1427757
ActivePhoenix Contact

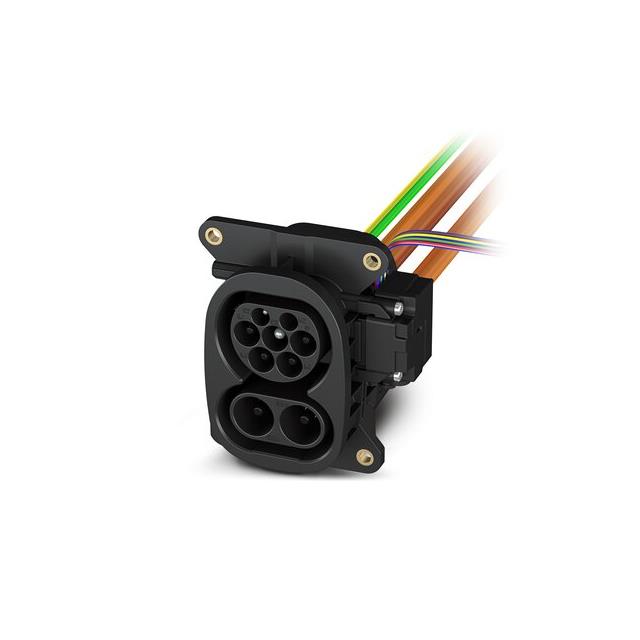

EV CONNECTORS CHARX T2HBI24-3AC32DC200-5 0M2
1427757
ActivePhoenix Contact
EV CONNECTORS CHARX T2HBI24-3AC32DC200-5 0M2
Description
General part information
1427757
16.40' (5.00m) Power Cord Green-Yellow, Orange 62196-2 (Type 2), 62196-3 (Type 2) To Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1427757 |
|---|---|
| 1st Connector | 62196-2 (Type 2), 62196-3 (Type 2) |
| 2nd Connector | Cable |
| Color | Orange, Green-Yellow |
| Conductor Types | Power, Signal |
| Current Rating Options | 2A, 32A |
| Length | 16.4 ft |
| Number of Conductors - Power | 7 |
| Number of Conductors - Signal | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Unshielded |
| Style | Leads, Female Plug |
| Voltage Rating (AC) | 30 VAC, 480 VAC |
