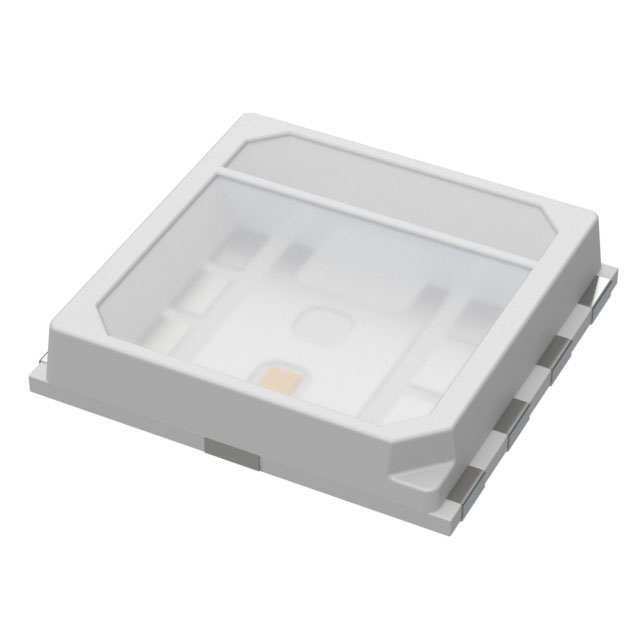

IN-P55QSTGRGBW
ActiveInolux Corporation
LED RGBW CLEAR SMD
IN-P55QSTGRGBW
ActiveInolux Corporation
LED RGBW CLEAR SMD
Description
General part information
IN-P55QSTGRGBW
Red, Green, Blue, White (RGBW) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue, 3.2V White 8-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-P55QSTGRGBW |
|---|---|
| Color | White (RGBW), Green, Red, Blue |
| Configuration | Independent |
| Current - Test (Blue) | 100 mA |
| Current - Test (Green) | 100 mA |
| Current - Test (Red) | 100 mA |
| Current - Test (White) | 100 mA |
| Current - Test Colors | Blue, Red, White, Green |
| Height (Max) | 1.35 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead Exposed Pad |
| Size / Dimension Length | 5.4 mm |
| Size / Dimension Width | 5 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.2 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3.2 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | White, Red, Green, Blue |
| Wavelength - Dominant (Blue) | 470 nm |
| Wavelength - Dominant (Green) | 525 nm |
| Wavelength - Dominant (Red) | 624 nm |
| Wavelength - Dominant Color | Blue, Red, Green |
