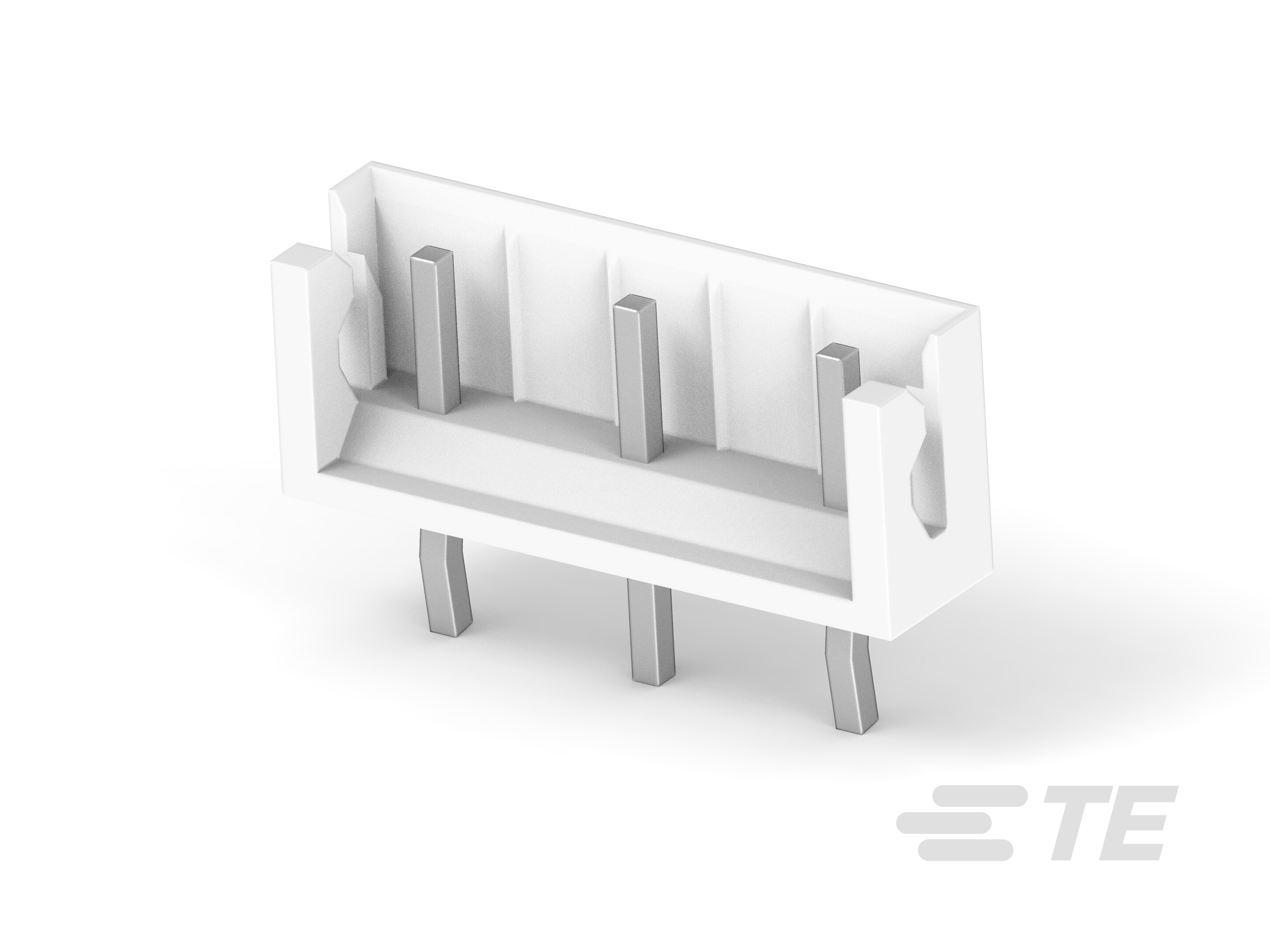

Specification	4-440052-5

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Length - Mating	0.136 in
Contact Length - Post	0.134 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.236 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Overall Contact Length	0.335 in
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	250 V
Voltage Rating (Type)	DC
