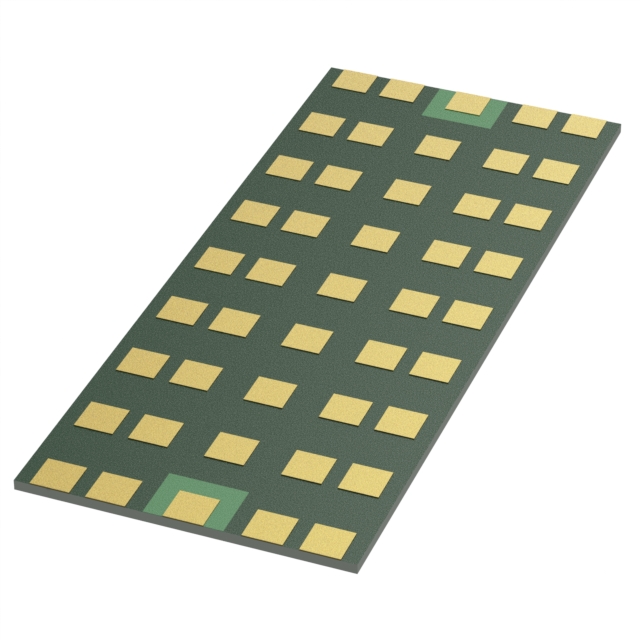

BP0IA0180A700
ObsoleteKYOCERA AVX
RF FILTER BAND PASS 180MHZ 45SMD
BP0IA0180A700
ObsoleteKYOCERA AVX
RF FILTER BAND PASS 180MHZ 45SMD
Description
General part information
BP0IA0180A700
180MHz Center Frequency Band Pass RF Filter (Radio Frequency) 97MHz Bandwidth 5dB 45-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BP0IA0180A700 |
|---|---|
| Bandwidth | 97 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 180 MHz |
| Height (Max) | 0.04 in |
| Insertion Loss | 5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 45-SMD, No Lead |
| Ripple (dB) | 1.5 dB |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
