SFR25H0002748FA500
ActiveVishay Dale

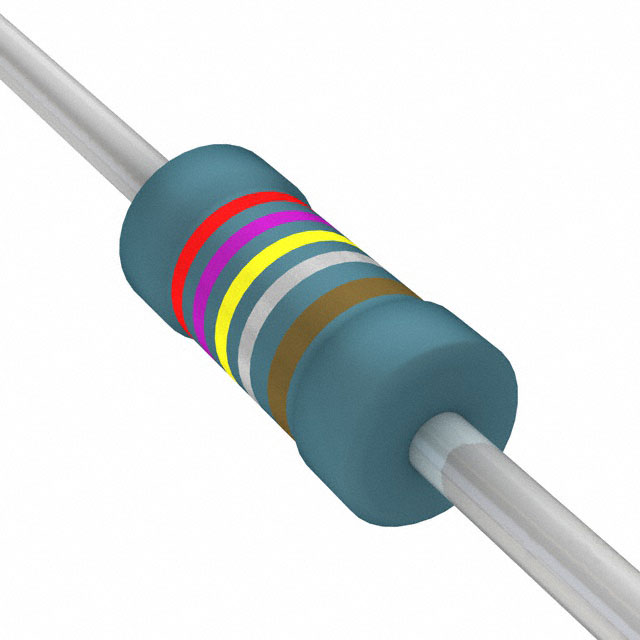

RES 2.74 OHM 1/2W 1% AXIAL
SFR25H0002748FA500
ActiveVishay Dale
RES 2.74 OHM 1/2W 1% AXIAL
Description
General part information
SFR25H0002748FA500
2.74 Ohms ±1% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SFR25H0002748FA500 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 2.74 Ohms |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 1 % |
