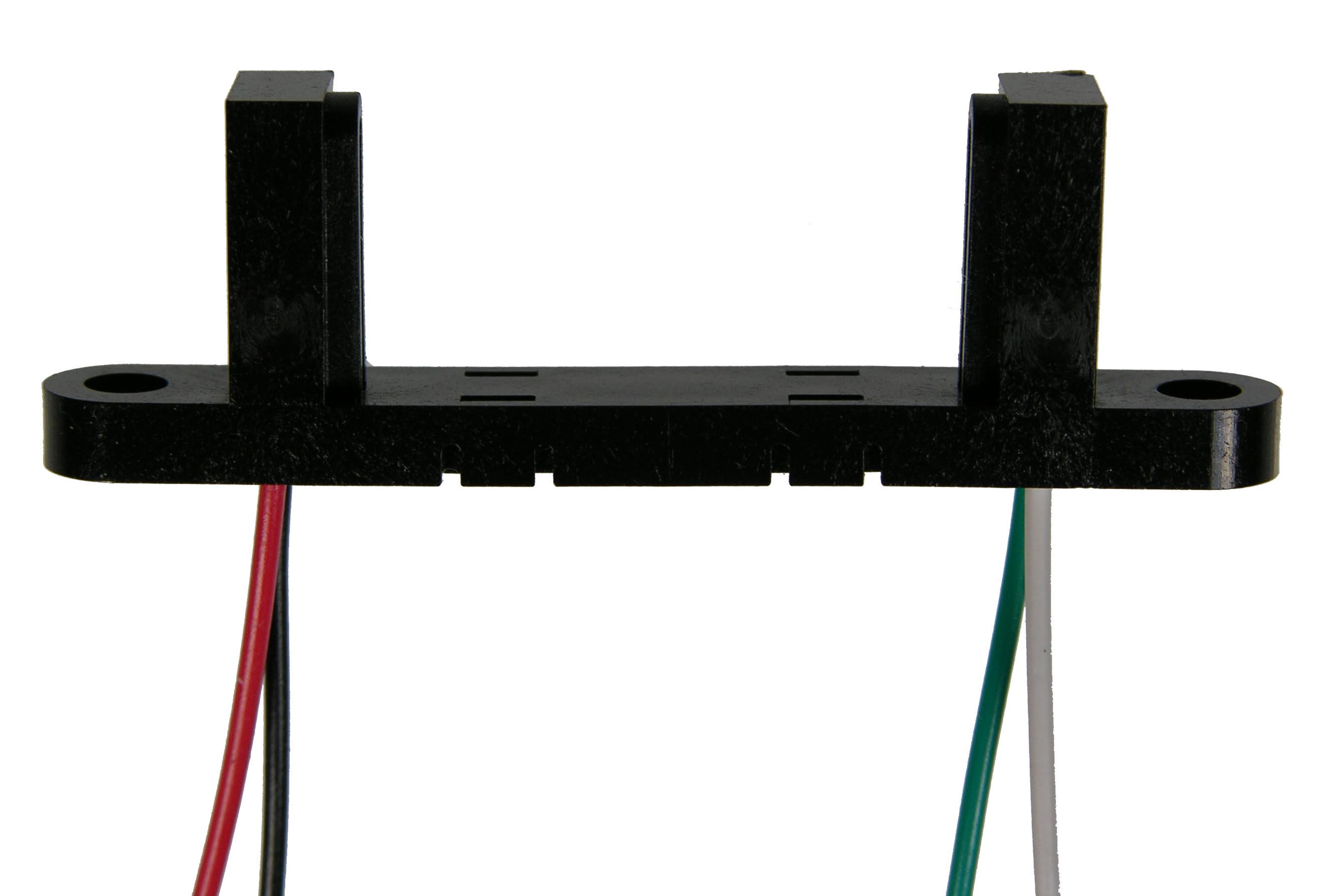

OPB315WZ
ActiveTT Electronics/BI
OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT SLOTTED SWITCH
OPB315WZ
ActiveTT Electronics/BI
OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT SLOTTED SWITCH
Description
General part information
OPB315WZ
OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT SLOTTED SWITCH
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB315WZ |
|---|---|
| Current - Collector (Ic) (Max) | 0.001 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Phototransistor |
| Package / Case | 4-Lead Dual Row, Slotted Module |
| Sensing Distance | 0.9 " |
| Sensing Method | Through-Beam |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
App Note: Optoelectronic Sensors for Electric Power Metering
RoHs 3 Declaration Form for Juarez Site
App Note 249: Slotted and Reflective Switches
OPB315
Quality Manual for Juarez Site
App Note 248: Connecting and Using Infrared Optoelectronics
Lead Free and RoHs Compliance for Juarez Site
Optoelectronics One Pager
Conflict Minerals Policy for Juarez Site
REACH Compliance for Juarez Site
RoHs Letter for Juarez Site
Sensors Product Selection Guide
Declaration of Mineral Conflict Free Material for Juarez Site
Custom Optoelectronic Assemblies Tri-Fold
Optoelectronics for Medical Tri-Fold
Juarez ISO 9001
Supplier Quality Requirements Manual
