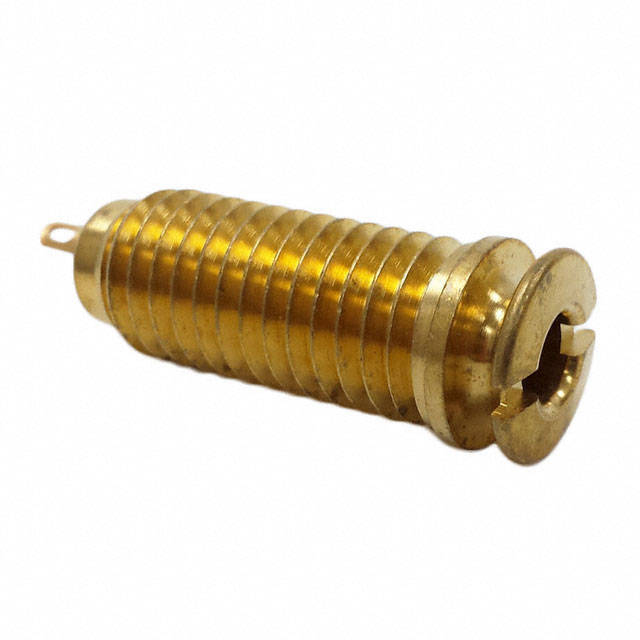

153X
ActiveSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM PNL MNT
153X
ActiveSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM PNL MNT
Description
General part information
153X
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | 153X |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Silver |
| Current Rating | 0.25 A |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Pitch (TPI) | 12 TPI |
| Thread Size (Class) | UNC |
| Thread Size (Nominal) | 0.5625 in |
| Voltage - Rated | 48 VDC |
