1-2487882-2
ActiveTE Connectivity AMP Connectors

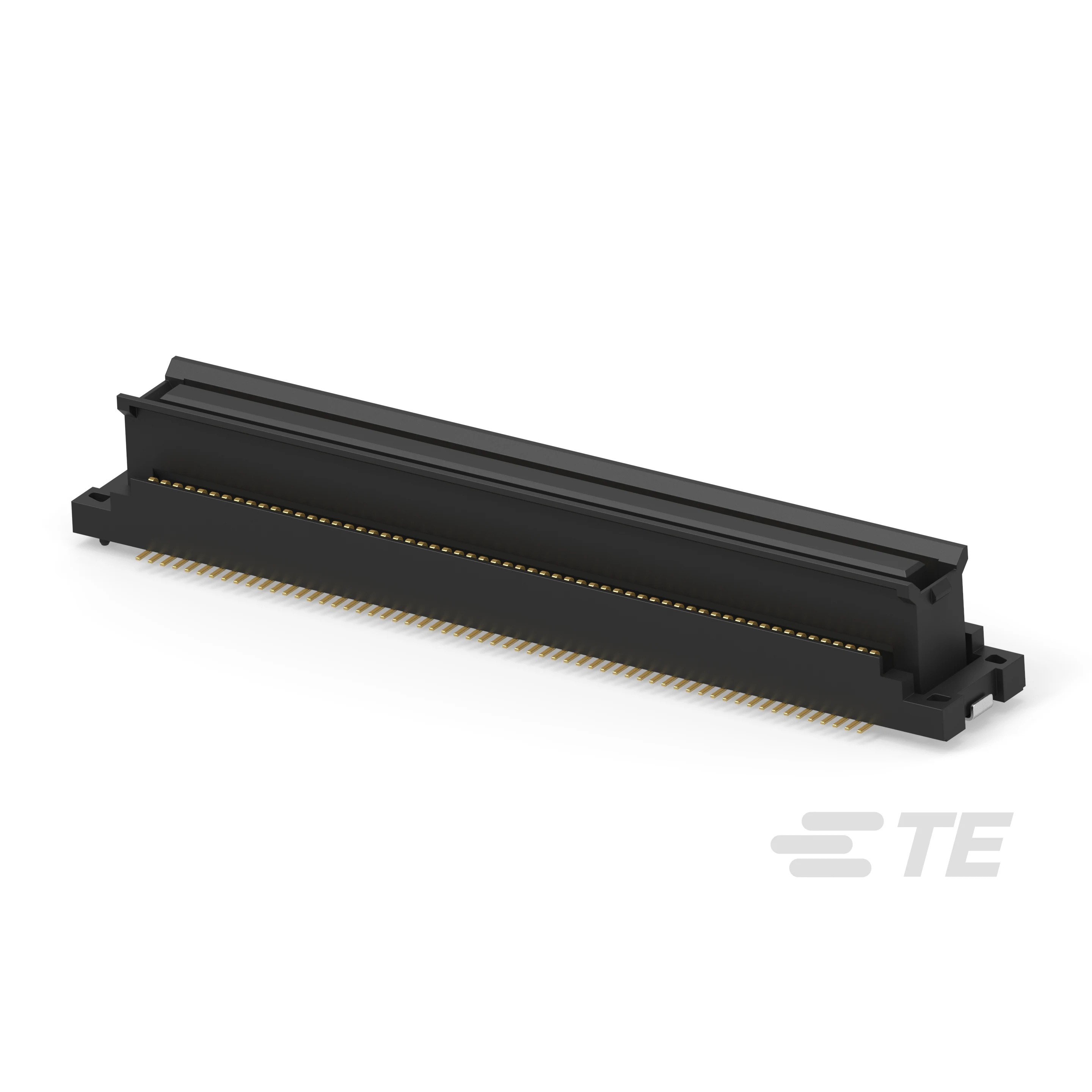

FLOATING BTB REC 8.45MM H, 120POS
1-2487882-2
ActiveTE Connectivity AMP Connectors
FLOATING BTB REC 8.45MM H, 120POS
Description
General part information
1-2487882-2
PCB Mount Header, Right Angle, Board-to-Board, 120 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Black, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2487882-2 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.333 in |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
