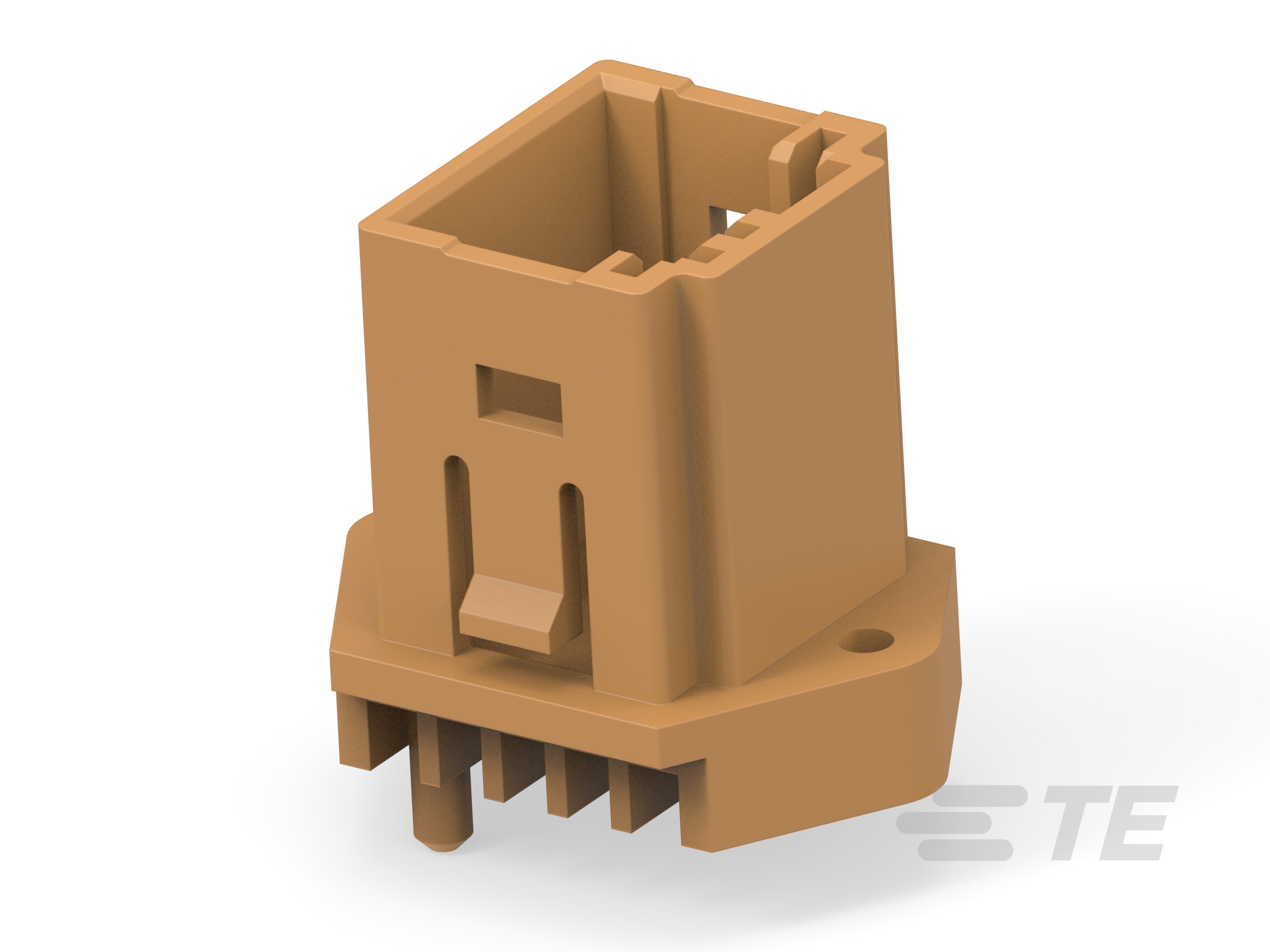

Specification	953363-3

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.232 in
Contact Length - Post	0.114 in
Contact Material	Copper Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Brown
Insulation Height	0.791 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.543 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
