XB4BVG5
ActiveLED PANEL MOUNT INDICATOR, ORANGE, 120 VAC, 22 MM, 14 MA, IP66, IP67, IP69, IP69K, NEMA 4X, NEMA 13
XB4BVG5
ActiveLED PANEL MOUNT INDICATOR, ORANGE, 120 VAC, 22 MM, 14 MA, IP66, IP67, IP69, IP69K, NEMA 4X, NEMA 13
Description
General part information
XB4BVG5

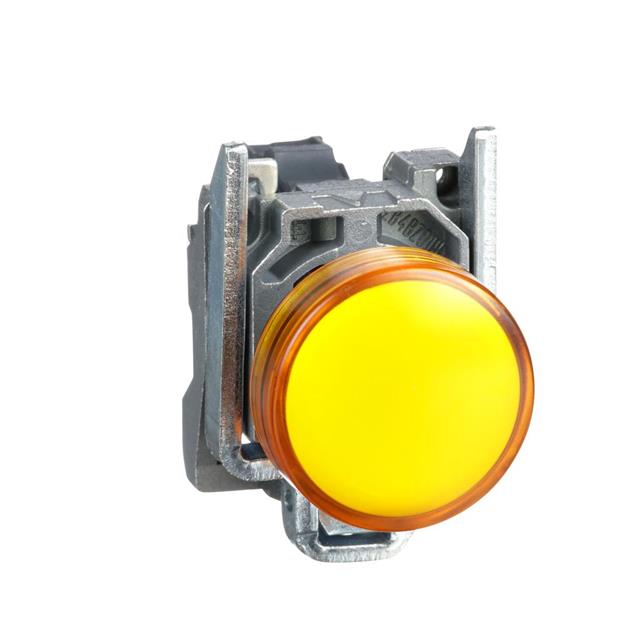

The XB4BVG5 is a Pushbutton Light Module with an orange plain lens integral LED operator and screw clamp terminals. This pilot light switch features a chromium-plated metal bezel, Zamak fixing collar and round signaling unit head. The XB4 series switch is suitable for use with the Harmony XB4 range products. It meets the CSA C22-2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5 and JIS C 4520 standards.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BVG5 |
|---|---|
| Current | 14 mA |
| Ingress Protection | IP69, IP67, NEMA 4X, 13, IP69K, IP66 |
| Lens Color | Orange |
| Lens Diameter | 30 mm |
| Lens Style | Round, Convex Top |
| Panel Cutout Dimension | 0.87 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 120 V |
| Voltage (Min) | 110 V |
