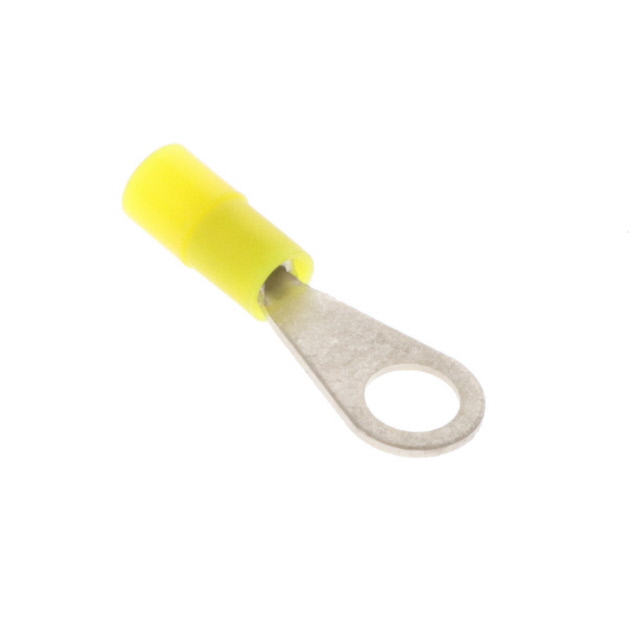

10-6-WN
Active3M
26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-6-WN
Active3M
26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-6-WN | 10-6 Series |
|---|---|---|
| - | - | |
| Color | Yellow | Yellow |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated | Insulated |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud | 6 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10-6 Series
26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN
Description
General part information
10-6 Series
Ring Terminal Connector 6 Stud Circular 22-26 AWG Crimp
Documents
Technical documentation and resources
