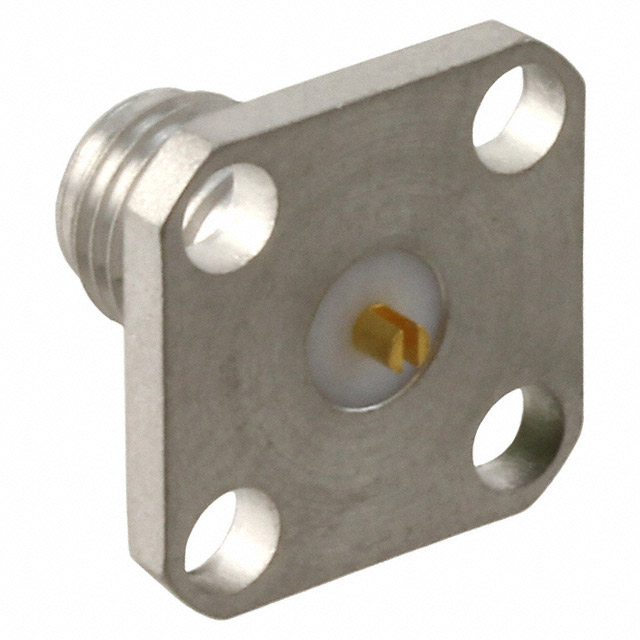

CONN SMA RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1052563-1
ActiveTE Connectivity AMP Connectors
CONN SMA RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1052563-1 | 1052 Series |
|---|---|---|
| Body Finish | - | Gold |
| Body Material | Stainless Steel | Stainless Steel |
| Cable Group | - | RG-174, 316 |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | SMA | SMA, SSMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket, Jack |
| Contact Termination | Solder | Solder, Compression, Solder Tab, Microstrip, Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Features | - | Extended Insulation, EMI/RFI Gasket, For Hermetically Sealed Pin, Field Replaceable |
| Frequency - Max [Max] | 18 GHz | 3 - 18 GHz |
| Housing Color | Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Clamp, 1 Connector, 1 Bushing, 1 Insulator, 1 Ferrule, 1 Heat Shrink, 1 Sleeve, 1 Contact, 1 Gasket |
| Mating Cycles | 500 | 500 |
| Mounting Feature | Flange | Flange |
| Mounting Type | - | Right Angle, Panel Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Shield Termination | Solder | Solder, Crimp, Screw |
| Voltage Rating | 335 V | 190 - 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1052 Series
CONN SMA RCPT STR 50 OHM SOLDER
| Part | Mating Cycles | Features | Voltage Rating | Connector Type | Mounting Feature | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Housing Color | Shield Termination | Number of Ports | Center Contact Plating | Center Contact Material | Dielectric Material | Contact Termination | Body Material | Impedance | Mounting Type | Body Finish | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1052552-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | ||||
TE Connectivity AMP Connectors 1052990-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | Panel Mount, Right Angle | |||
TE Connectivity AMP Connectors 1052981-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Gold | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | Panel Mount, Right Angle | Gold | ||
TE Connectivity AMP Connectors 1052563-1 | 500 | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 105 ░C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | |||||
TE Connectivity AMP Connectors 1052024-1 | 500 | 250 VDC | Female Socket, Jack | Flange | 3 GHz | 165 °C | -65 ░C | SMA | Silver | Crimp | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | 1 Bushing, 1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Sleeve | 316, RG-174 | |||
TE Connectivity AMP Connectors 1052628-1 | 500 | EMI/RFI Gasket, Field Replaceable, For Hermetically Sealed Pin | Female Socket, Receptacle | Flange | 18 GHz | 165 °C | -65 ░C | SMA | Silver | Screw | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Compression | Stainless Steel | 50 Ohms | 1 Connector, 1 Gasket | ||||
TE Connectivity AMP Connectors 1052514-1 | 500 | 190 V | Female Socket, Receptacle | Flange | 18 GHz | 105 ░C | -55 °C | SMA | Gold | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder Tab | Stainless Steel | 50 Ohms | Gold | ||||
TE Connectivity AMP Connectors 1052527-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Gold | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Microstrip, Solder | Stainless Steel | 50 Ohms | Gold | |||
TE Connectivity AMP Connectors 1052646-1 | 500 | Field Replaceable, For Hermetically Sealed Pin | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 165 °C | -65 ░C | SMA | Silver | Screw | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Compression | Stainless Steel | 50 Ohms | ||||
TE Connectivity AMP Connectors 1052987-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Gold | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | Panel Mount, Right Angle | Gold | ||
TE Connectivity AMP Connectors 1052634-1 | 500 | EMI/RFI Gasket, Field Replaceable, For Hermetically Sealed Pin | Female Socket, Receptacle | Flange | 18 GHz | 165 °C | -65 ░C | SMA | Silver | Screw | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Compression | Stainless Steel | 50 Ohms | |||||
TE Connectivity AMP Connectors 1052596-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | ||||
TE Connectivity AMP Connectors 1052421-1 | 500 | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Gold | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder Cup | Stainless Steel | 50 Ohms | Gold | ||||
TE Connectivity AMP Connectors 1052518-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 165 °C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | ||||
TE Connectivity AMP Connectors 1052538-1 | Female Socket, Jack | Flange | SSMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | ||||||||||
TE Connectivity AMP Connectors 1052643-1 | 500 | Field Replaceable, For Hermetically Sealed Pin | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 165 °C | -65 ░C | SMA | Silver | Screw | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Compression | Stainless Steel | 50 Ohms | ||||
TE Connectivity AMP Connectors 1052720-1 | 500 | Female Socket, Receptacle | Flange | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | Stainless Steel | 50 Ohms | |||||||||
TE Connectivity AMP Connectors 1052528-1 | 500 | Extended Insulation | 335 V | Female Socket, Receptacle | Flange | 18 GHz | 125 °C | -65 ░C | SMA | Silver | Solder | 1 | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Microstrip, Solder | Stainless Steel | 50 Ohms |
Description
General part information
1052 Series
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
