776310-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 6MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 6MM

Technical Specifications

Parameters and characteristics for this part

Specification	776310-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.325 in
Contact Length - Post	8.25 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.236 in
Pitch - Mating	6 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

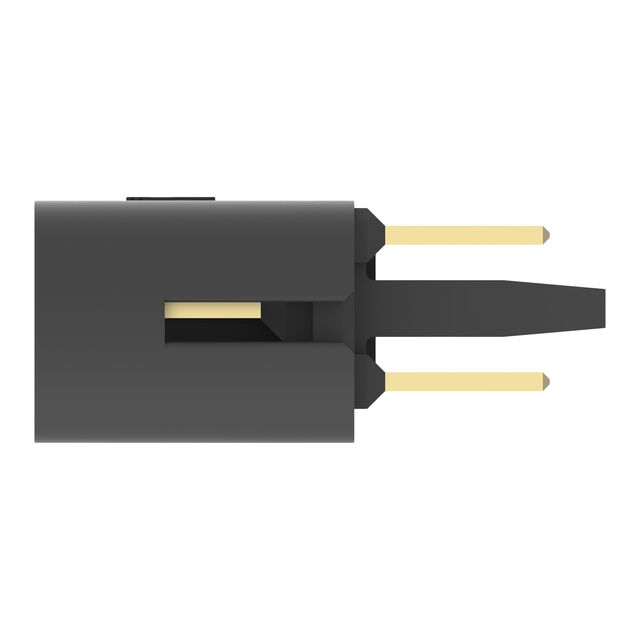

CONN HEADER VERT 2POS 6MM

Part	Style	Contact Length - Post	Contact Length - Post	Contact Type	Features	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Termination	Pitch - Mating	Pitch - Mating	Number of Rows	Fastening Type	Contact Finish - Mating	Number of Positions	Contact Material	Insulation Color	Connector Type	Number of Positions Loaded	Shrouding	Contact Shape
TE Connectivity AMP Connectors 776310-1	Board to Cable/Wire	0.325 in	8.25 mm	Male Pin	Board Guide	13.5 mm	0.531 in	Through Hole	Glass Filled, Nylon, Polyamide (PA)	Solder	0.236 in	6 mm	1	Latch Holder	Gold	2	Copper Alloy	Black	Header	All	Shrouded - 4 Wall	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.236" (6.00mm)
