FMWAN1157
ActiveFairview Microwave
SPCL WG ANTENNA SMA JACK 4-8 GHZ
FMWAN1157
ActiveFairview Microwave
SPCL WG ANTENNA SMA JACK 4-8 GHZ
Description
General part information
FMWAN1157

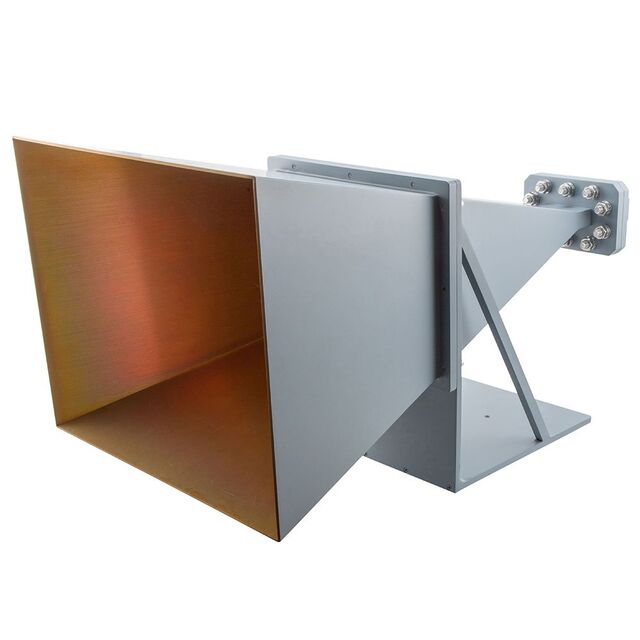

RF ANTENNA General Purpose Horn SMA Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN1157 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 6 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 8 GHz |
| Frequency Range (Min) | 4 GHz |
| Gain | 20 dBi |
| Height (Max) | 9.46 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Female |
| VSWR | 1.5 |
