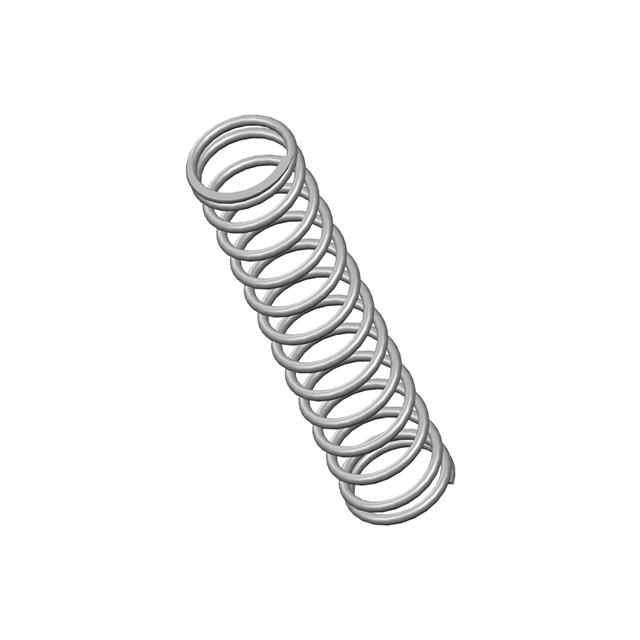

12312CS
ActiveCentury Spring Corp
COMP O=1.094,L= 5.00,W= .1055
12312CS
ActiveCentury Spring Corp
COMP O=1.094,L= 5.00,W= .1055
Description
General part information
12312CS
COMP O=1.094,L= 5.00,W= .1055
Technical Specifications
Parameters and characteristics for this part
| Specification | 12312CS |
|---|---|
| Diameter - Inside | 0.884 in |
| Diameter - Outside | 1.094 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 5 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 15 lbs/in |
| Type | Compression |
| Wire Diameter | 0.105 in |
