SKE-15/40

Active

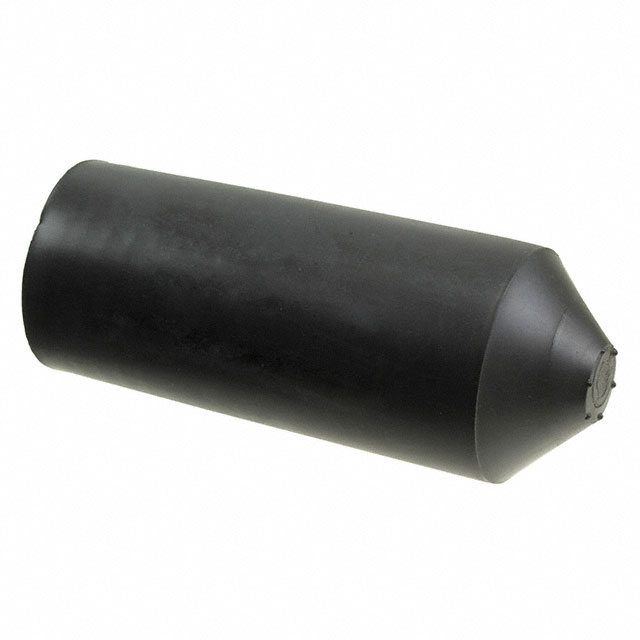

HEATSHRINK CAP BLACK 0.59-1.26"

Search across all available documentation for this part.

Active

HEATSHRINK CAP BLACK 0.59-1.26"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKE-15/40	SKE Series

Color	Black	Black
Features	Adhesive Coating, Flame Retardant	Adhesive Coating, Flame Retardant
Large Diameter Recovered [diameter]	15 mm	7.62 - 44.96 mm
Large Diameter Recovered [diameter]	0.591 in	0.3 - 1.77 in
Large Diameter Supplied	1.571 in	1.571 in
Large Diameter Supplied	39.9 mm	20.1 - 39.9 mm
Large Diameter Supplied	-	0.791 - 3.941 in
Large Diameter Supplied	-	75.9 - 100.1 mm
Material	Polyolefin (PO), Semi-Rigid	Polyolefin (PO), Semi-Rigid
Total Length Recovered	-	55.4 - 162.61 mm
Total Length Recovered	-	2.181 - 6.402 in
Total Length Recovered [x]	3.539 in	3.539 in
Total Length Recovered [x]	89.89 mm	89.89 mm
Type	Cap	Cap

HEATSHRINK CAP BLACK 0.59-1.26"

Part	Total Length Recovered [x]	Total Length Recovered [x]	Features	Large Diameter Supplied	Large Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Material	Color	Large Diameter Supplied [diameter]	Total Length Recovered	Total Length Recovered	Large Diameter Supplied [diameter]
3M SKE-15/40	3.539 in	89.89 mm	Adhesive Coating, Flame Retardant	1.571 in	39.9 mm	15 mm	0.591 in	Cap	Polyolefin (PO), Semi-Rigid	Black
3M SKE-8/20			Adhesive Coating, Flame Retardant		20.1 mm	7.62 mm	0.3 in	Cap	Polyolefin (PO), Semi-Rigid	Black	0.791 in	55.4 mm	2.181 in
3M SKE-45/100			Adhesive Coating, Flame Retardant			44.96 mm	1.77 in	Cap	Polyolefin (PO), Semi-Rigid	Black	3.941 in	162.61 mm	6.402 in	100.1 mm
3M SKE-30/76			Adhesive Coating, Flame Retardant			30 mm	1.181 in	Cap	Polyolefin (PO), Semi-Rigid	Black	2.988 in	157.99 mm	6.22 in	75.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Cap Black
