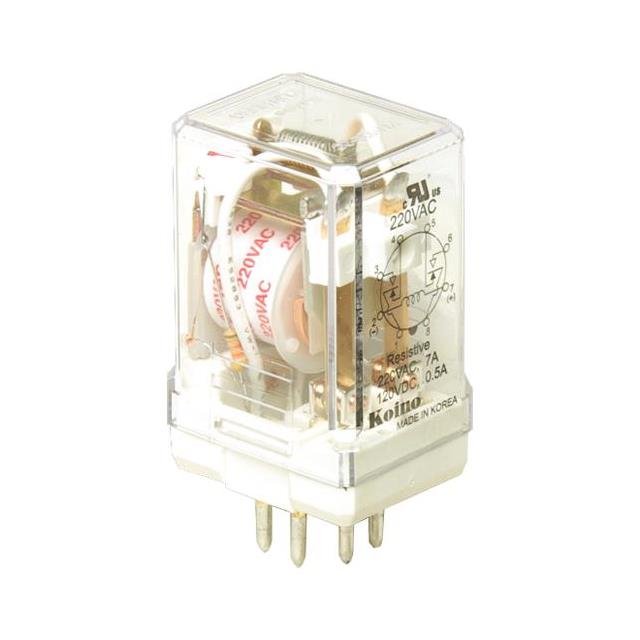

KH-102-2CL-DC24V

Active

KOINO

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KH-102-2CL-DC24V

Active

KOINO

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KH-102-2CL-DC24V	KH-102 Series

Coil Current	60 mA	11.5 - 120 mA
Coil Resistance	400 Ohms	1.64 - 400 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 220 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), 3PDT (3 Form C)
Contact Material	Polybutylene Succinate (PBS), Phosphor Bronze	Polybutylene Succinate (PBS), Phosphor Bronze
Contact Rating (Current)	10 A	10 A
Features	Lighted Indicator	Lighted Indicator
Load - Max Switching	240 W	240 W
Load - Max Switching	-	1650 VA
Mounting Type	Socketable	Socketable
Must Operate Voltage	19.2 VDC	9.6 - 176 VDC
Must Release Voltage	3.6 VDC	1.8 - 66 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-5 °C	-5 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Switching Voltage	24 VDC, 220 VAC	24 - 220 VDC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal)

KH-102 Series

RELAY GEN PURPOSE 3PDT 10A 24V

Part	Release Time	Contact Form	Mounting Type	Contact Rating (Current)	Relay Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Must Release Voltage	Switching Voltage	Coil Voltage	Features	Must Operate Voltage	Coil Type	Coil Resistance	Load - Max Switching	Termination Style	Contact Material	Load - Max Switching [Max]
KOINO KH-102-2CL-DC12V	25 ms	DPDT (2 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	120 mA	1.8 VDC	24 VDC, 220 VAC	12 VDC	Lighted Indicator	9.6 VDC	Non Latching	100 Ohms	240 W	Plug In, 8 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)
KOINO KH-102-2C-AC110V	25 ms	DPDT (2 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	23 mA	33 VAC	24 VDC, 220 VAC	110 VAC/DC		88 VAC/DC	Non Latching	1.64 kOhms		Plug In, 8 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)	1650 VA
KOINO KH-102-3C-DC12V	25 ms	3PDT (3 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	120 mA	1.8 VDC	24 VDC, 220 VAC	12 VDC		9.6 VDC	Non Latching	100 Ohms	240 W	Plug In, 11 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)
KOINO KH-102-2C-DC24V	25 ms	DPDT (2 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	60 mA	3.6 VDC	24 VDC, 220 VAC	24 VDC		19.2 VDC	Non Latching	400 Ohms	240 W	Plug In, 8 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)
KOINO KH-102-2CL-AC110V	25 ms	DPDT (2 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	23 mA	33 VAC	24 VDC, 220 VAC	110 VAC/DC	Lighted Indicator	88 VAC/DC	Non Latching	1.64 kOhms		Plug In, 8 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)	1650 VA
KOINO KH-102-2C-DC12V	25 ms	DPDT (2 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	120 mA	1.8 VDC	24 VDC, 220 VAC	12 VDC		9.6 VDC	Non Latching	100 Ohms	240 W	Plug In, 8 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)
KOINO KH-102-3C-AC220V	25 ms	3PDT (3 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	11.5 mA	66 VAC	24 VDC, 220 VAC	220 VAC/DC		176 VAC	Non Latching	6.8 kOhms		Plug In, 11 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)	1650 VA
KOINO KH-102-3CL-DC12V	25 ms	3PDT (3 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	120 mA	1.8 VDC	24 VDC, 220 VAC	12 VDC	Lighted Indicator	9.6 VDC	Non Latching	100 Ohms	240 W	Plug In, 11 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)
KOINO KH-102-3CL-AC220V	25 ms	3PDT (3 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	11.5 mA	66 VAC	24 VDC, 220 VAC	220 VAC/DC	Lighted Indicator	176 VAC	Non Latching	6.8 kOhms		Plug In, 11 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)	1650 VA
KOINO KH-102-3C-DC24V	25 ms	3PDT (3 Form C)	Socketable	10 A	General Purpose	25 ms	-5 °C	40 °C	60 mA	3.6 VDC	24 VDC, 220 VAC	24 VDC		19.2 VDC	Non Latching	400 Ohms	240 W	Plug In, 11 Pin (Octal)	Phosphor Bronze, Polybutylene Succinate (PBS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.65
		20	$ 12.62
		40	$ 11.10
		50	$ 10.79
		100	$ 10.21

Description

General part information

KH-102 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
