Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1BXG-4036M | A1BXG Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Strain Relief | Strain Relief |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 40 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A1BXG Series
IDC CABLE- ASR34G/ AE34M / X
| Part | Length [x] | Length [x] | Color | Contact Finish | Connector Type | Pitch - Cable | Pitch - Cable | Number of Positions | Shielding | Number of Rows | Pitch - Connector | Pitch - Connector | Cable Termination | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1BXG-3436M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 34 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors A1BXG-3036G | 3 ft | 914.4 mm | Gold | Socket to Cable | 0.05 " | 1.27 mm | 30 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors A1BXG-2636M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 26 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors A1BXG-5036M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 50 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors A1BXG-2036G | 3 ft | 914.4 mm | Gold | Socket to Cable | 0.05 " | 1.27 mm | 20 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors A1BXG-4036M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 40 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors A1BXG-5036G | 3 ft | 914.4 mm | Gold | Socket to Cable | 0.05 " | 1.27 mm | 50 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors A1BXG-2436G | 3 ft | 914.4 mm | Gold | Socket to Cable | 0.05 " | 1.27 mm | 24 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors A1BXG-2036M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 20 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors A1BXG-1036M | 3 ft | 914.4 mm | Multiple, Ribbon | Gold | Socket to Cable | 0.05 " | 1.27 mm | 10 | Unshielded | 2 | 0.1 in | 2.54 mm | IDC | Strain Relief | 15 µin | 0.38 µm |
Description
General part information
A1BXG Series

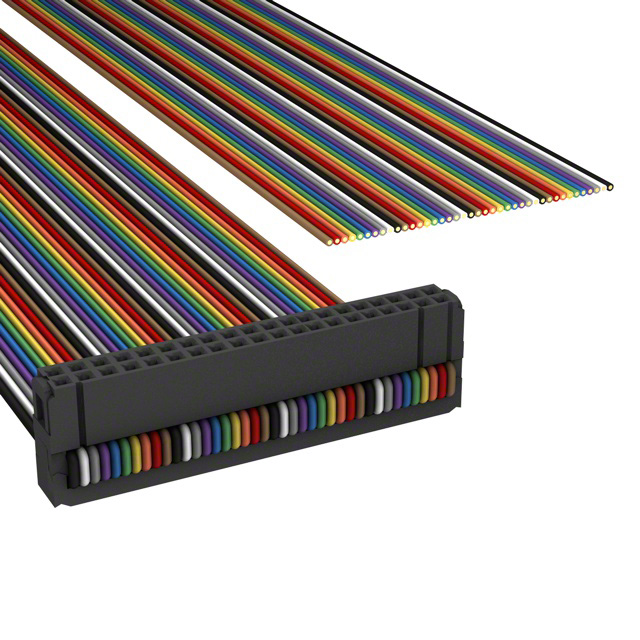

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
