M4L-2-10
ActiveSignal Transformer

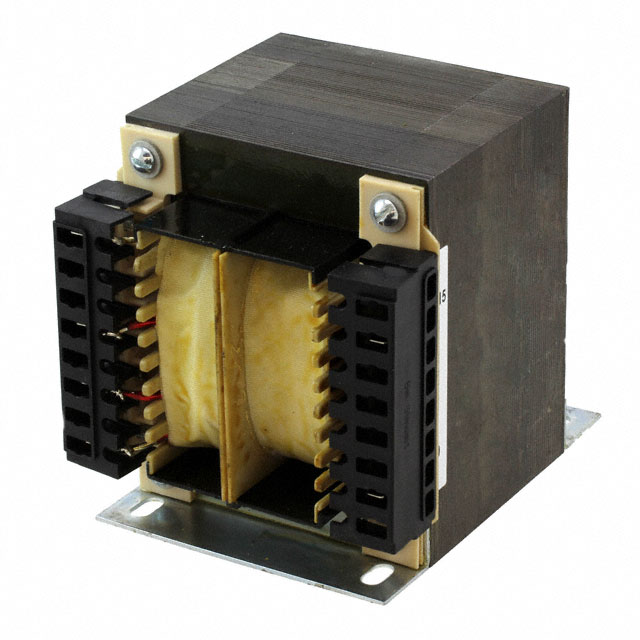

PWR XFMR LAMINATED 1000VA CHAS
M4L-2-10
ActiveSignal Transformer
PWR XFMR LAMINATED 1000VA CHAS
Description
General part information
M4L-2-10
PWR XFMR LAMINATED 1000VA CHAS
Technical Specifications
Parameters and characteristics for this part
| Specification | M4L-2-10 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 8.7 A |
| Height - Seated (Max) | 133.4 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 1000 W |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 124.2 mm |
| Size / Dimension Width | 5.7 in |
| Termination Style | Terminal Block |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 250V, 210V |
| Voltage - Primary (Option 1) | 250 V |
| Voltage - Primary (Option 2) | 230 V |
| Voltage - Primary (Option 3) | 210 V |
| Voltage - Secondary (Full Load) | 115 V |
| Weight | 22 lbs |
