21-21-72

Active

Cinch Connectivity Solutions Trompeter

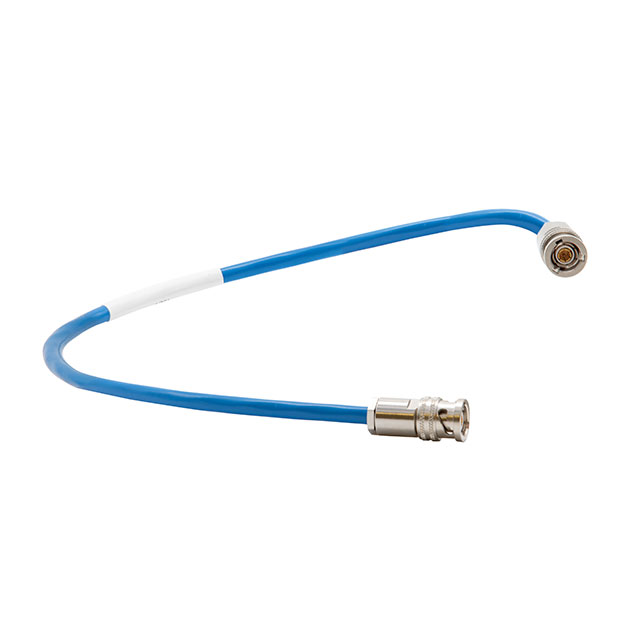

CBL ASSY TRB PLUG TO PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

21-21-72

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TRB PLUG TO PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 127.92

Description

General part information

21-21 Series

Cable Assembly Coaxial TRB to TRB Twinaxial 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available

Specification	21-21-72	21-21 Series

1st Connector	TRB Plug	TRB Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	TRB Plug	TRB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Twinaxial	Twinaxial
Color	Blue	Blue
Features	Shielded	Shielded
Frequency - Max [Max]	500 GHz	500 GHz
Length	6 ft	4.9 - 20 ft
Length	72 in	5 - 196.9 "
Length	1.8 m	1.5 - 609.6 mm
Length	-	14.8 ft
Length	-	177.2 in
Length	-	4.5 m
Overall Impedance	78 Ohms	78 Ohms
Qualification	MIL-STD-1553B	MIL-STD-1553B
Style	TRB to TRB	TRB to TRB

Part	Frequency - Max [Max]	2nd Contact Gender	1st Connector	Qualification	Overall Impedance	Length	Length	Cable Type	Style	2nd Connector Mounting Type	Color	Features	1st Connector Mounting Type	1st Contact Gender	2nd Connector	Length	Length [x]	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter 21-21-24	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	24 "	609.6 mm	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug
Cinch Connectivity Solutions Trompeter 21-21-60	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	5 '	1.5 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	5 ft
Cinch Connectivity Solutions Trompeter 21-21-M3.0	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	118.1 in	3 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	9.8 '
Cinch Connectivity Solutions Trompeter 21-21-M1.5	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	59.1 in	1.5 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	4.9 ft
Cinch Connectivity Solutions Trompeter 21-21-36	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	36 in	91.44 cm	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug
Cinch Connectivity Solutions Trompeter 21-21-120	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	10 ft	3 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	10 '
Cinch Connectivity Solutions Trompeter 21-21-M2.5	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	98.4 in	2.5 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	8.2 '
Cinch Connectivity Solutions Trompeter 21-21-M4.5	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms			Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug		14.8 ft	177.2 in	4.5 m
Cinch Connectivity Solutions Trompeter 21-21-240	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	20 ft	6.1 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	20 ft
Cinch Connectivity Solutions Trompeter 21-21-72	500 GHz	Male	TRB Plug	MIL-STD-1553B	78 Ohms	72 in	1.8 m	Twinaxial	TRB to TRB	Free Hanging (In-Line)	Blue	Shielded	Free Hanging (In-Line)	Male	TRB Plug	6 ft
